Removing the CPU dummy cover

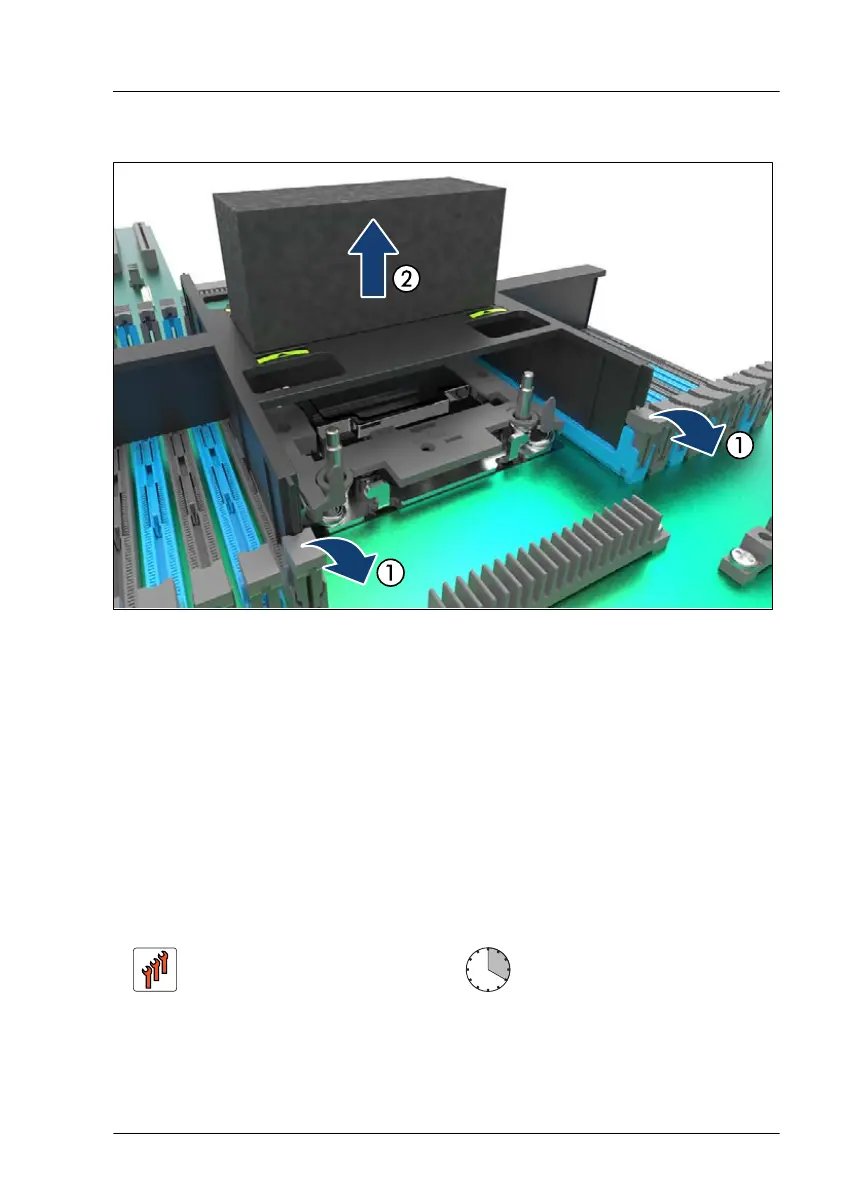

Figure 223: Removing the CPU dummy cover from the socket
▶
Eject the CPU dummy cover from the memory slot by pressing out the
securing clips at each end of the memory slot on both sides of the CPU
socket (1).
▶
Remove the CPU dummy cover (2) and put it aside for future use.
▶
If applicable, install a memory dummy module, see "Installing the CPU
dummy cover" on page
364.
11.5 Replacing a CPU or heat sink
Field Replaceable Unit
(FRU)
Hardware: 15 minutes
Software: 5 minutes
Processor (CPU)
RX2540 M7 Upgrade and Maintenance Manual 365
