Remove the screw (see circle).
▶
Remove the rear air grid 3.
CAUTION
Keep the rear air grid for future use.
▶
Always replace rear air grids into unused installation locations to
comply with applicable EMC regulations and satisfy
coolingrequirements.
4.14.2 Installing a rear air grid
Installing the rear air grid 1

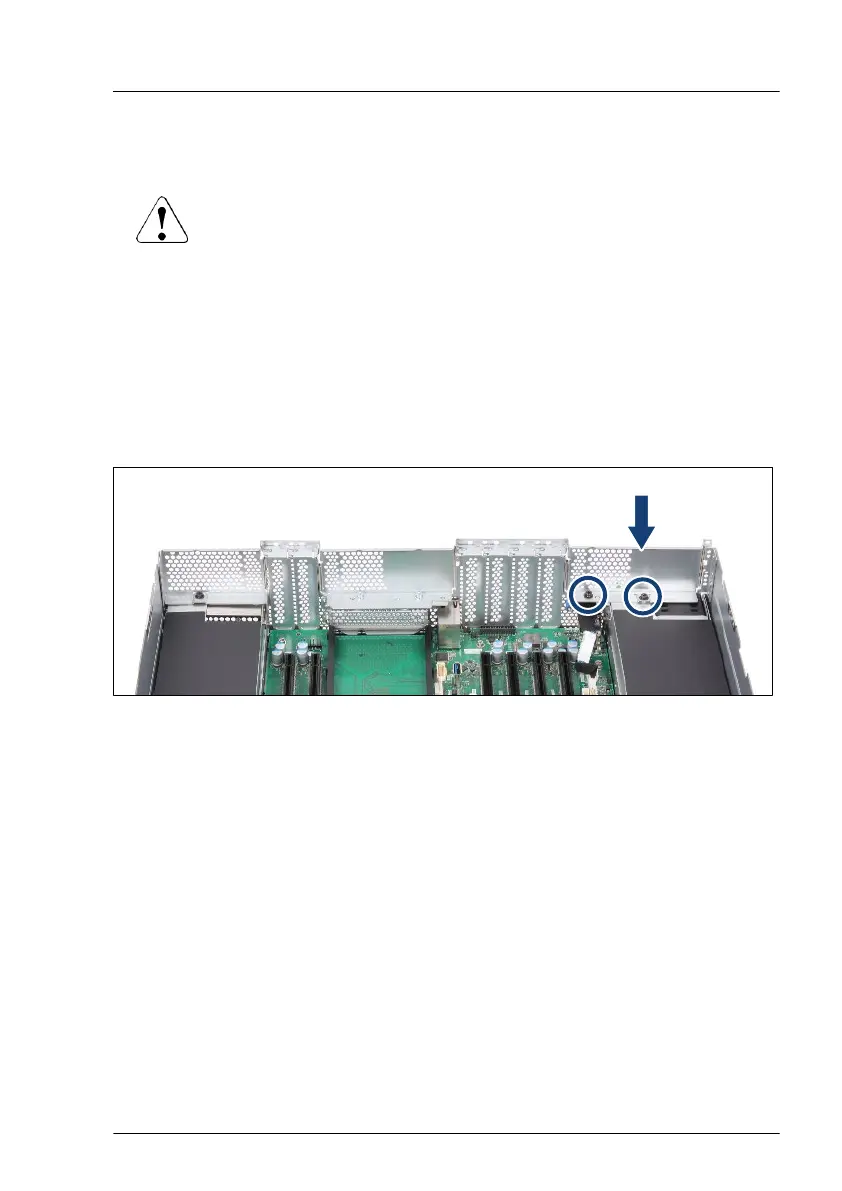

Figure 41: Installing the rear air grid 1
▶
Insert the rear air grid 1.
▶
Fasten the two screws (see circles).
Basic hardware procedures
RX2540 M7 Upgrade and Maintenance Manual 87
