7.9 Rear HDD/SSD extension box
7.9.1
Basic information (rear HDD/SSD)
Position of the rear HDD cages

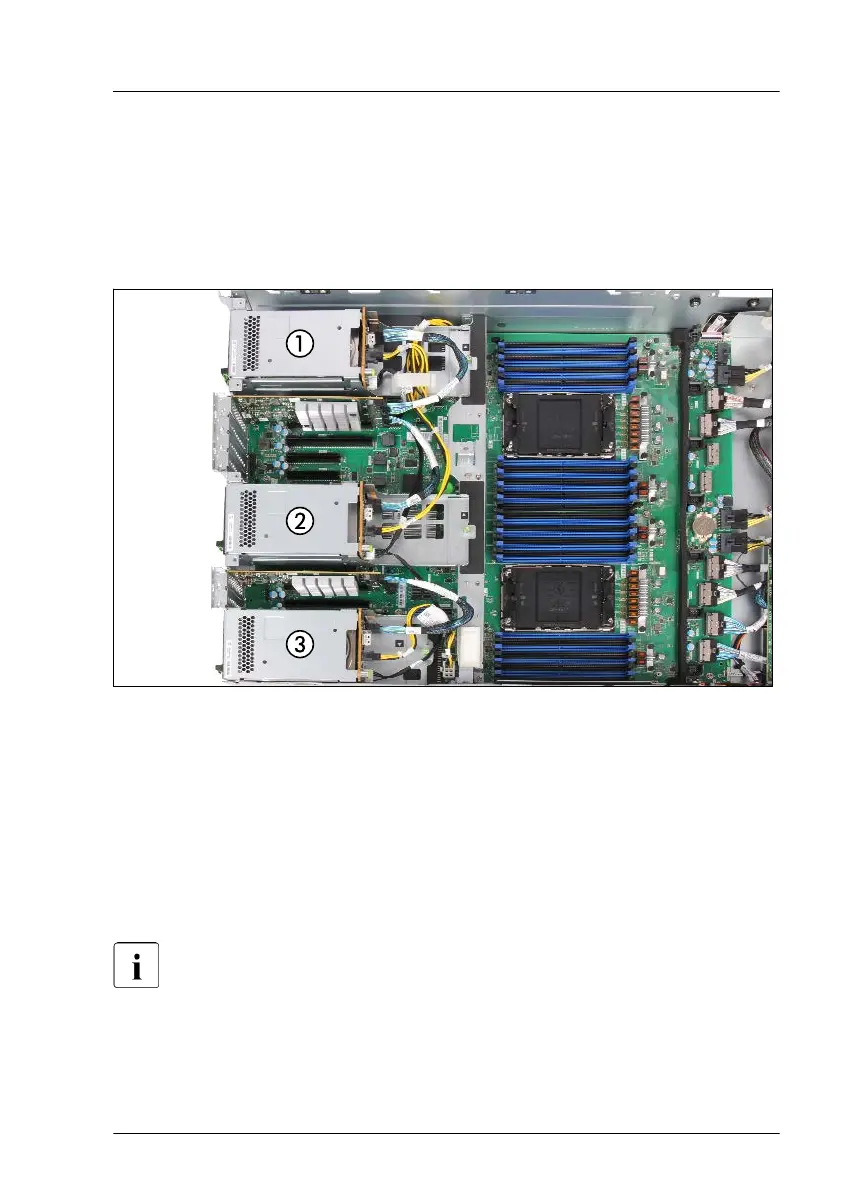

Figure 115: Position of the rear HDD cages
1 HDD cage 1
2
HDD cage 2
3 HDD cage 3
Replacing failed or aged drives
The tables show the location of the HDD in the device, BIOS Setup or HII
Configuration Utility, and the description in the OS log for each AHCI/PRAID
connection. Refer to when replacing failed or aged drives.
ServerView RAID Software is not provided anymore, If you install
ServerV
iew Agentless Service, Server View RAID Manager is running
internally. So, the source of the logs is listed as ServerView RAID.
Hard disk drive (HDD) / solid state disk (SSD)
RX2540 M7 Upgrade and Maintenance Manual 227
