Error indicator (2)
Status Description
off No HDD/SSD error detected.
orange on An HDD/SSD error has been detected.
Possible causes:
–
The drive is defective and needs replacing.
– A RAID rebuild process has failed.
– The HDD/SSD module has not been inserted correctly.
flashing orange
slowly
HDD/SSD RAID rebuild is in progress. Data is being
restored after replacing a drive that has been combined
into a RAID array
.
18.2.3 Server rear
18.2.3.1
Connectors on the server rear

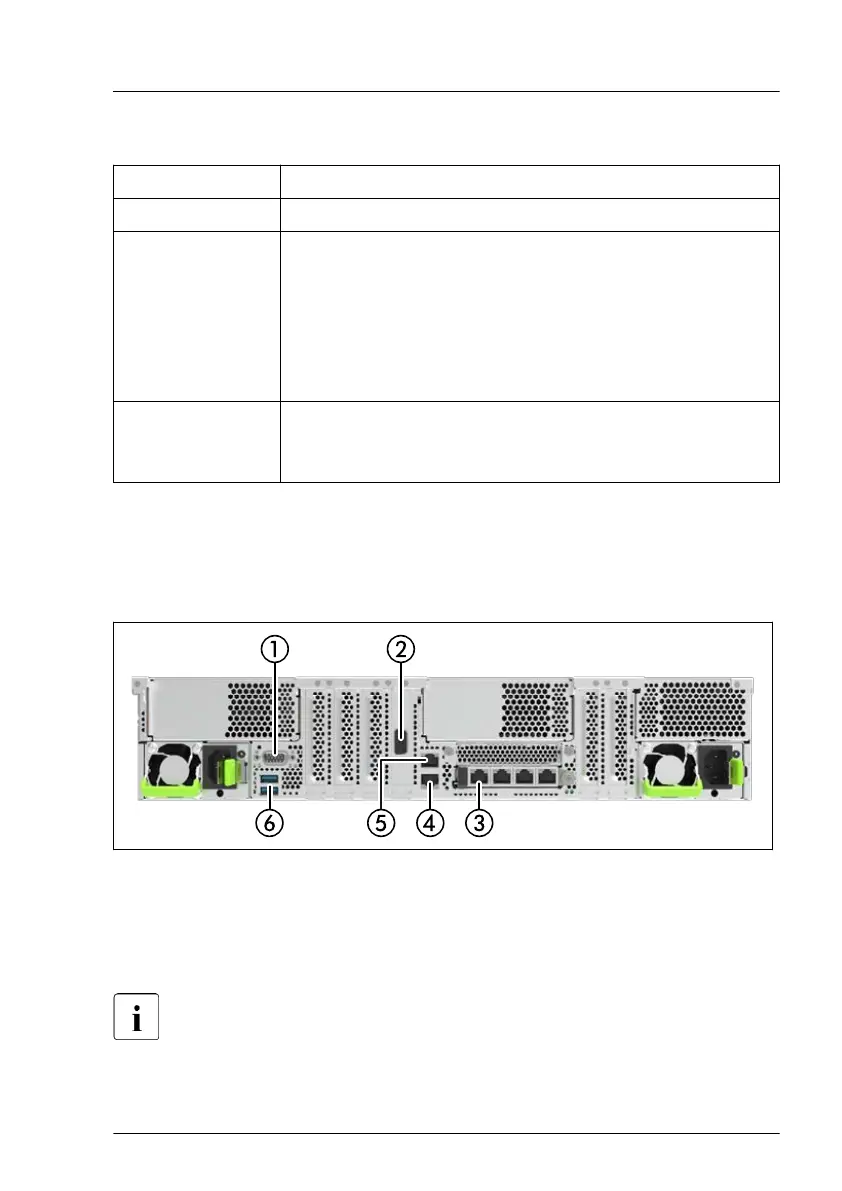

Figure 364: Connectors on the server rear
1 Rear VGA connector
2
Serial interface (option)
3 OCP module (option)
4 Management LAN connector
5 LAN connector (shared LAN)
6 USB 3.0 connectors (2x)
The serial interface (2) can be used as the standard interface or for
communication with iRMC. The serial interface connector is an option.
Appendix A
RX2540 M7 Upgrade and Maintenance Manual 547
