Fujitsu PRIMERGY RX2540 M7

27RX2540 M7

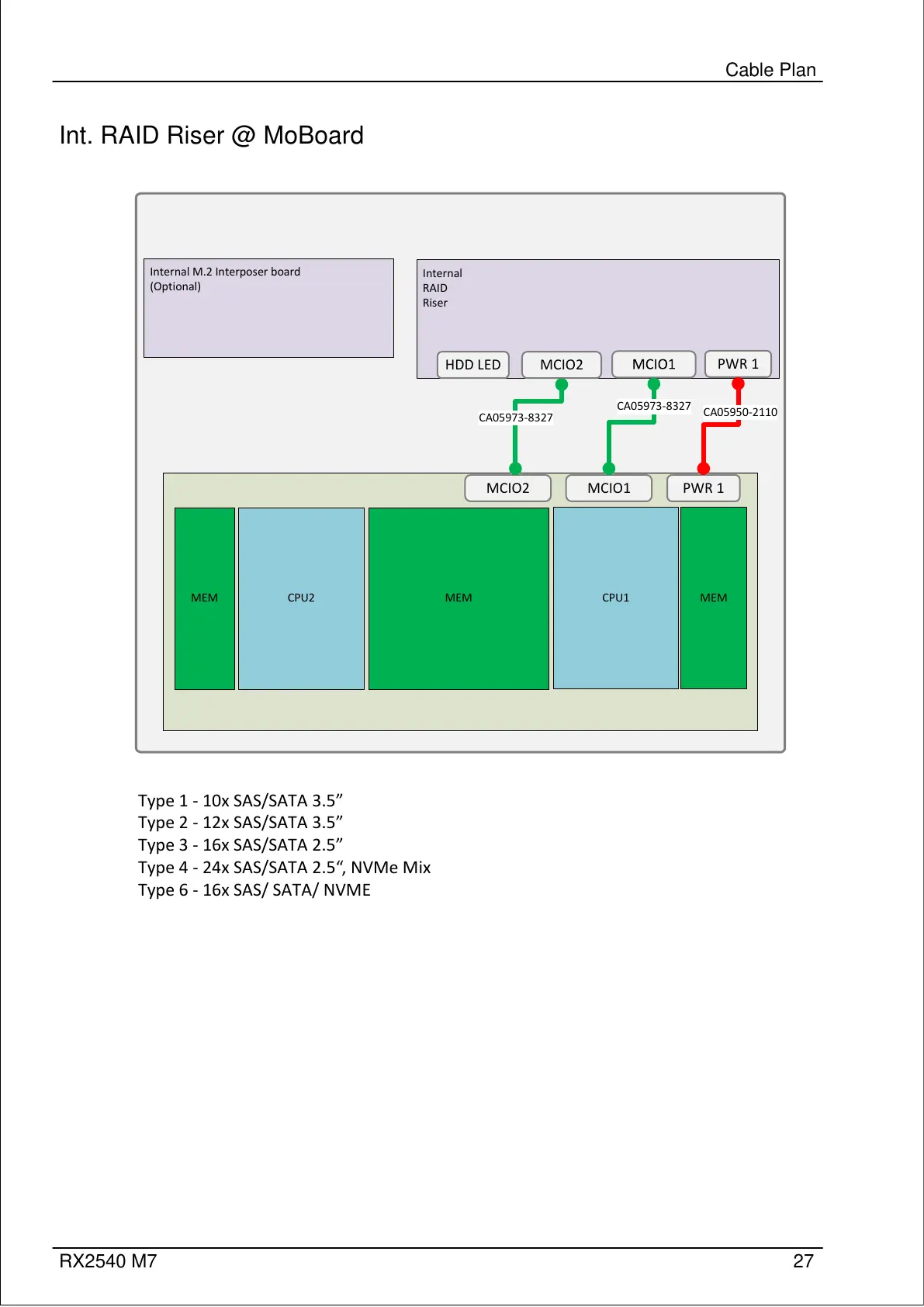

Int. RAID Riser @ MoBoard
Cable Plan
Internal
RAID
Riser
MEM
MEM
MEMCPU2
CPU1
PWR 1
HDD LED
PWR 1MCIO1
CA05950-2110
CA05973-8327
MCIO2
CA05973-8327
MCIO2
Internal M.2 Interposer board
(Optional)
Type 1 - 10x SAS/SATA 3.5”
Type 2 - 12x SAS/SATA 3.5”
Type 3 - 16x SAS/SATA 2.5”
Type 4 - 24x SAS/SATA 2.5“, NVMe Mix
Type 6 - 16x SAS/ SATA/ NVME
