Installing the GPU air duct

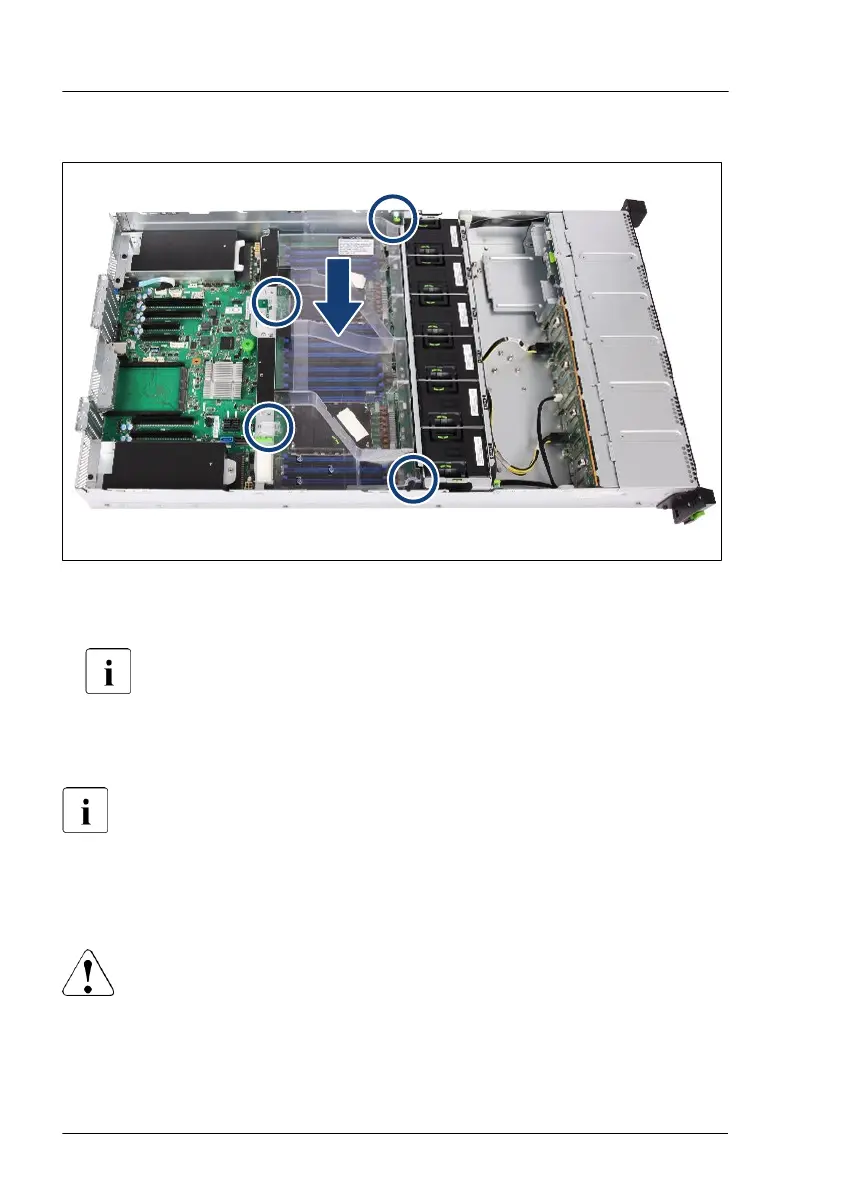

Figure 33: Installing the GPU air duct
▶
Install the GPU air duct.
Ensure that the GPU air duct engages in the guiding points (see
circles).
▶
If applicable, install all riser modules, see "Handling riser modules" on
page 72.
If there is an FBU installed, see "Installing the FBU with the FBU
holder" on page
325.
4.12.2 Removing the air duct
CAUTION
▶
Be careful with the FBU cable.
▶
If an FBU is installed, first follow the procedure that is described in
"Removing the FBU with the FBU holder" on page 327.
