Removing the air duct

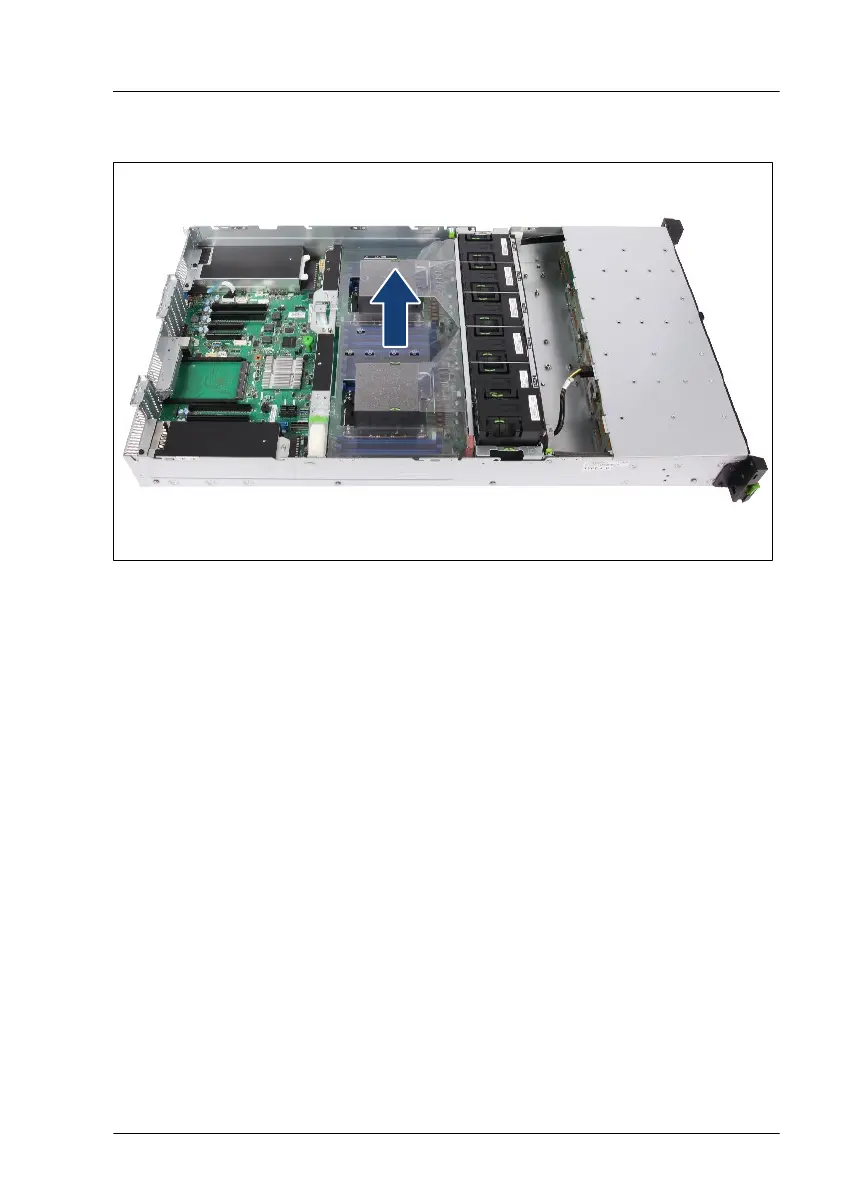

Figure 34: Removing the air duct
▶
If applicable, remove all riser modules, see "Handling riser modules" on
page 72.
▶
Carefully pull out the air duct upward using the four green touch points.
