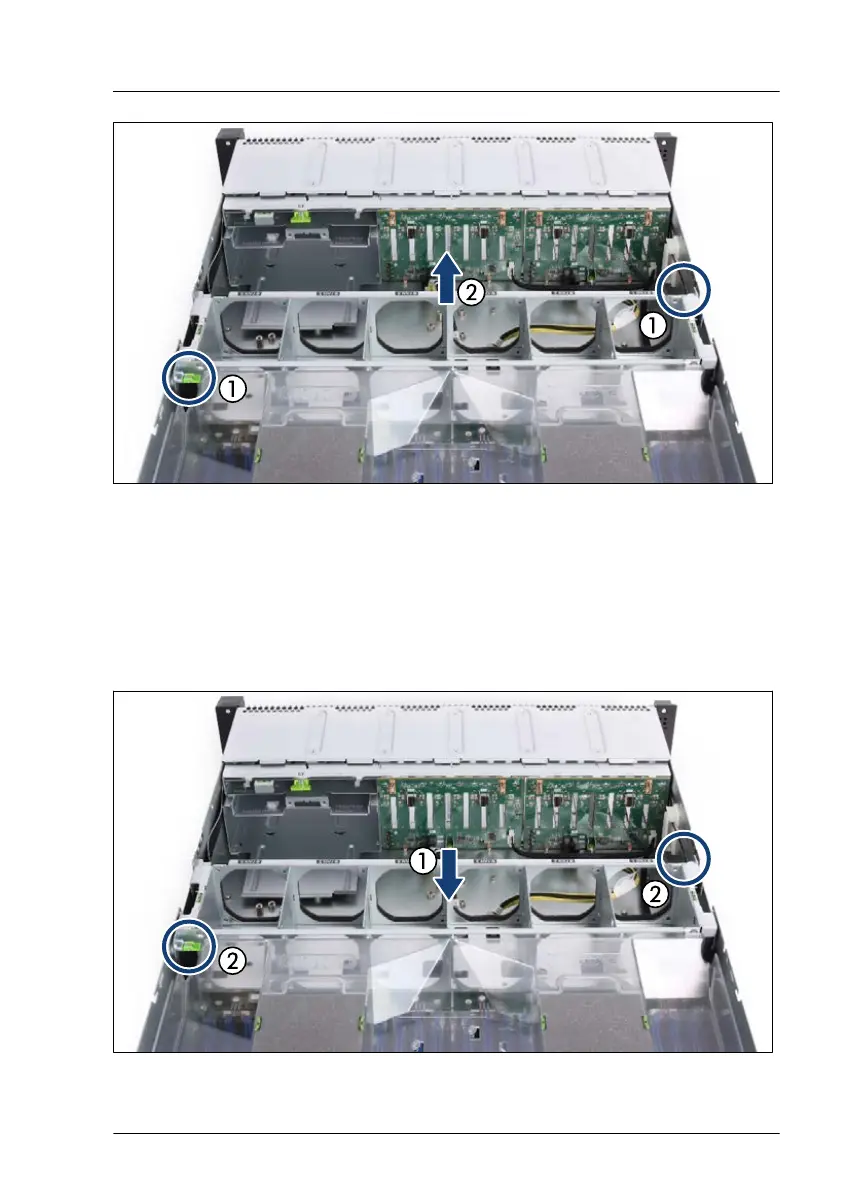

Figure 29: Removing the fan cage
▶
Open the green locks (1).
▶
Remove the fan cage upward (2).
4.1
1.2
Installing the fan cage
Figure 30: Installing the fan cage
Basic hardware procedures
RX2540 M7
Upgrade and Maintenance Manual
77
