Using the CSS button on the system board
If the system has been powered of
f, the onboard indicators guides you to the
defective component.
CAUTION
It is mandatory to disconnect all power cords from the system in order to
use the Indicate CSS functionality
.
▶
Shut down and switch of
f the server.
▶
Disconnect all power cords from the system.
▶
Press the Indicate CSS button to highlight defective components. The
indicator next to the defective component lights up.

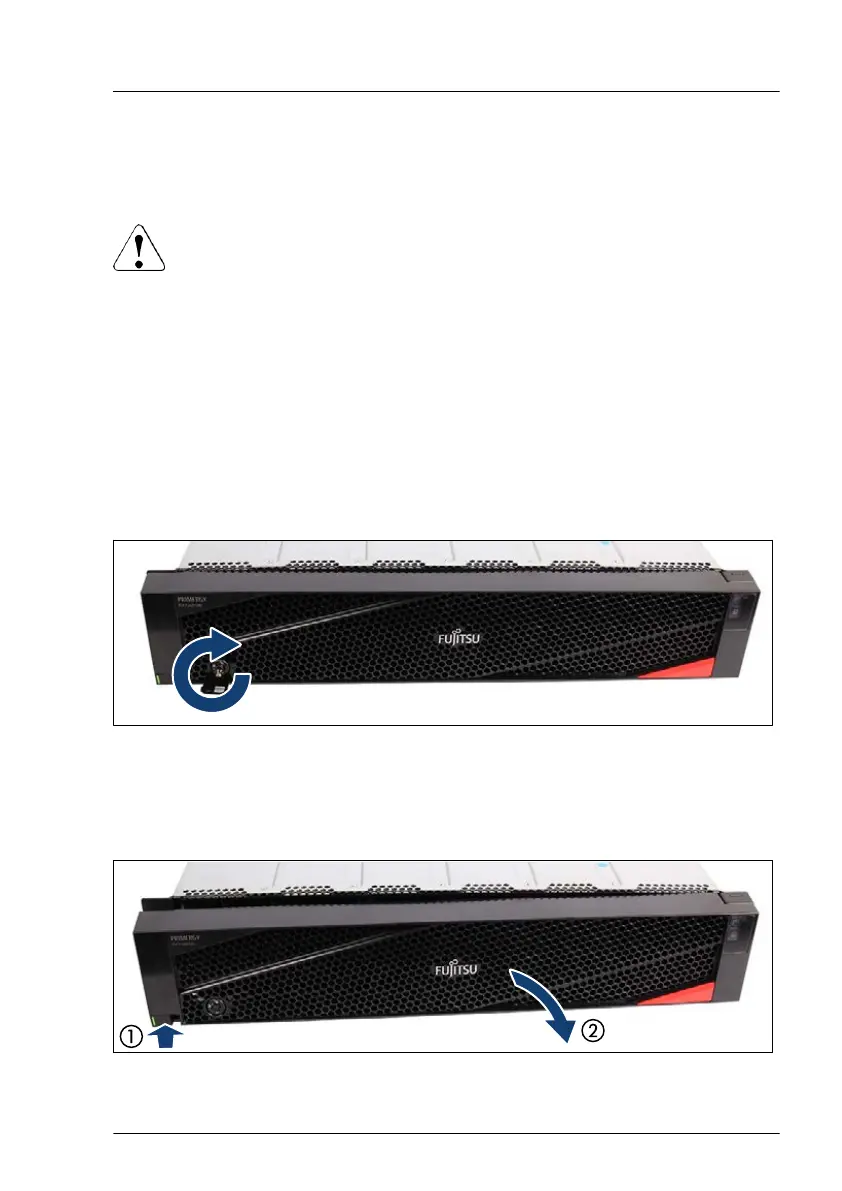

4.2 Removing the front cover with lock
Figure 2: Turning the key
▶
Insert the key
.
▶
Turn the key in open position.
Figure 3: Removing the front cover
Basic hardware procedures
RX2540 M7 Upgrade and Maintenance Manual 49
