Press the two green buttons inward to release the locking mechanism (1).
▶
Fold the top cover 1 up (2).
▶
Remove the top cover 1 upward (3).
Removing the top cover 2

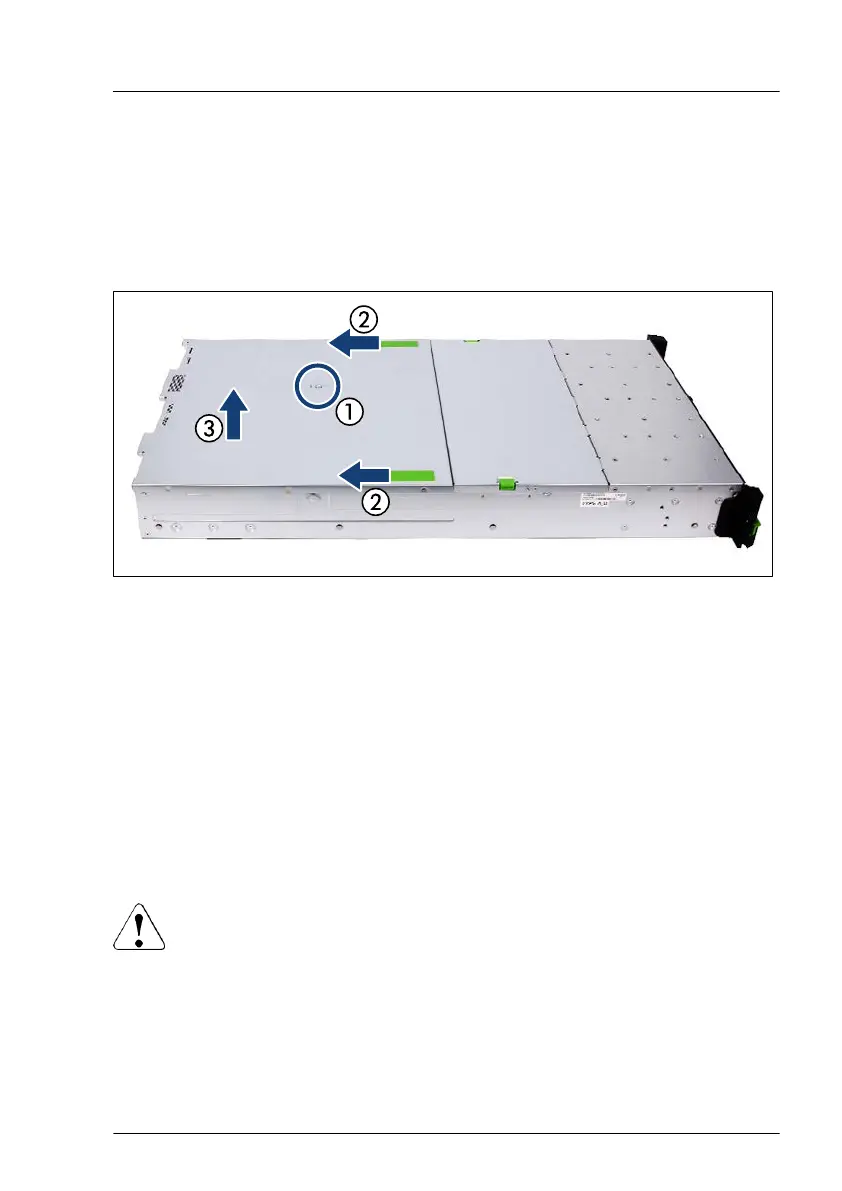

Figure 11: Removing the top cover 2
▶
Loosen the screw (1).
▶
Push the top cover 2 to the rear side using the green touch points (2).
▶
Remove the top cover 2 upward (3).
4.6
Reassembling
4.6.1 Safety notes
CAUTION
▶
Before attaching the covers, make sure no unnecessary parts or
tools are left inside the server
.
▶
The top cover must be replaced as soon as possible for purposes
of cooling, to comply with EMC regulations (regulations regarding
electromagnetic compatibility) and to prevent fires.
▶
For more information, see "Important information" on page 33.
Basic hardware procedures
RX2540 M7 Upgrade and Maintenance Manual 59
