Fujitsu PRIMERGY RX2540 M7

Position of riser modules

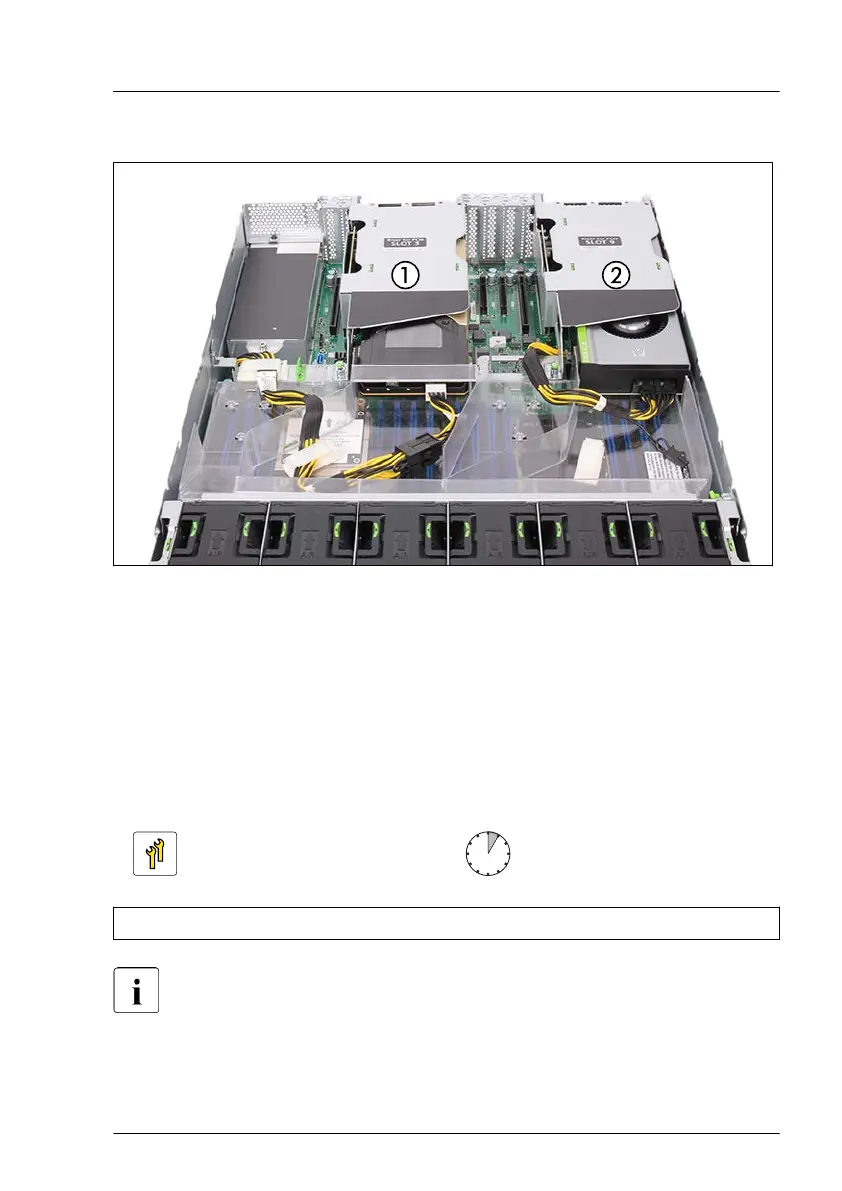

Figure 129: Positions of riser modules
1 Riser module 1, offers PCIe slot 3/4 or
PCIe slot 3 (GPGPU riser module).
2 Riser module 2, offers PCIe slot 9/10
or PCIe slot 9 (GPGPU riser module).
9.3 Handling slot brackets
9.3.1
Installing slot brackets
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: Phillips PH2 / (+) No. 2 screwdriver
Use the low profile bracket perforated for relevant controllers. No
bracket needed for installing the internal RAID controller in the internal
RAID riser module.
Expansion cards and backup units
