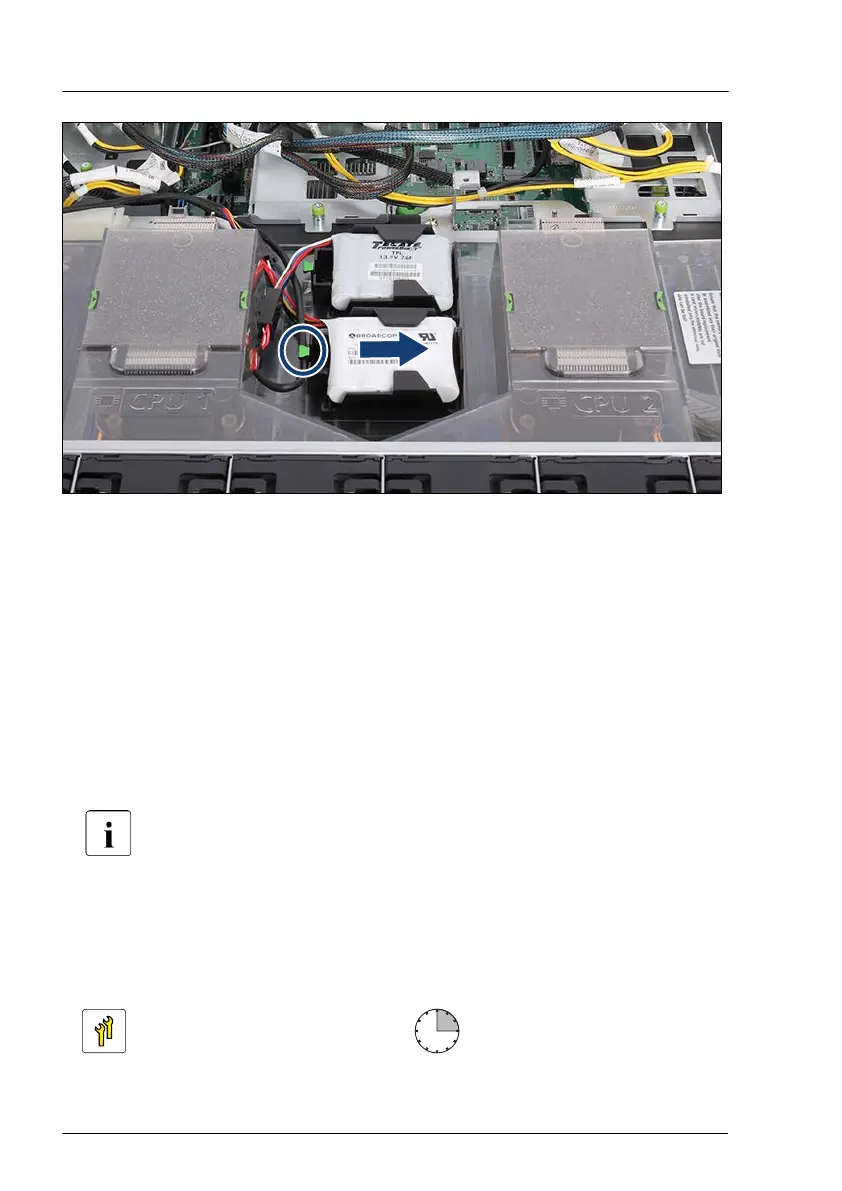

Figure 190: Installing the FBU with the FBU holder
▶
Insert the FBU with the holder and slide in direction of the arrow until the
FBU holder engages (see circle).
▶
Install the RAID controller, see "Installing an expansion card" on page 269.
Concluding steps
▶
"Reassembling" on page 59.
▶
"Connecting the power cord" on page 65.
▶
"Switching on the server" on page 71.
The recalibration of the FBU starts automatically, and finishes within a
few minutes.
▶
If applicable, "Installing the front cover with lock" on page
71.
9.10.3 Removing an FBU
Upgrade and Repair Unit
(URU)
Hardware: 15 minutes
Expansion cards and backup units
