Fujitsu PRIMERGY RX2540 M7

18.1.3 Server interior
18.1.3.1
Servers with air cooling

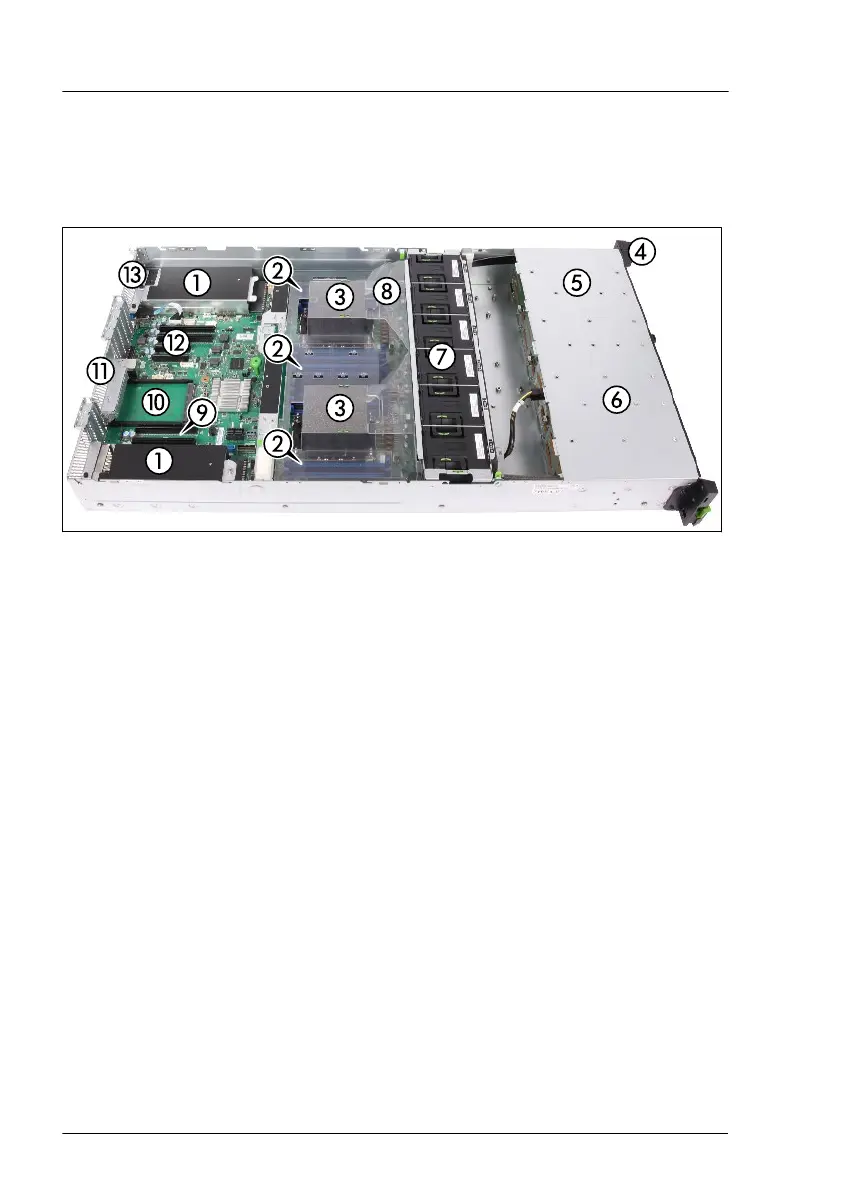

Figure 355: PRIMERGY RX2540 M7 interior
1 Up to 2 PSUs / dummy cover
2
Main memory
3 CPUs
4 Front panel module / front VGA
(option) / dummy cover
5 ODD (option) / dummy cover
6 Up to 12x 3.5-inch HDDs / 24x 2.5-inch
HDDs
7 Fan modules
8 Air duct
9 PCIe slot 1-2
10 OCP module (option)
11 PCIe slots 3 or 3/4 / Riser module 1
12 PCI slots 5-8
13 PCIe slots 9 or 9/10 / Riser module 2
