4.10.2 Installing a riser module
Installing the riser module 1

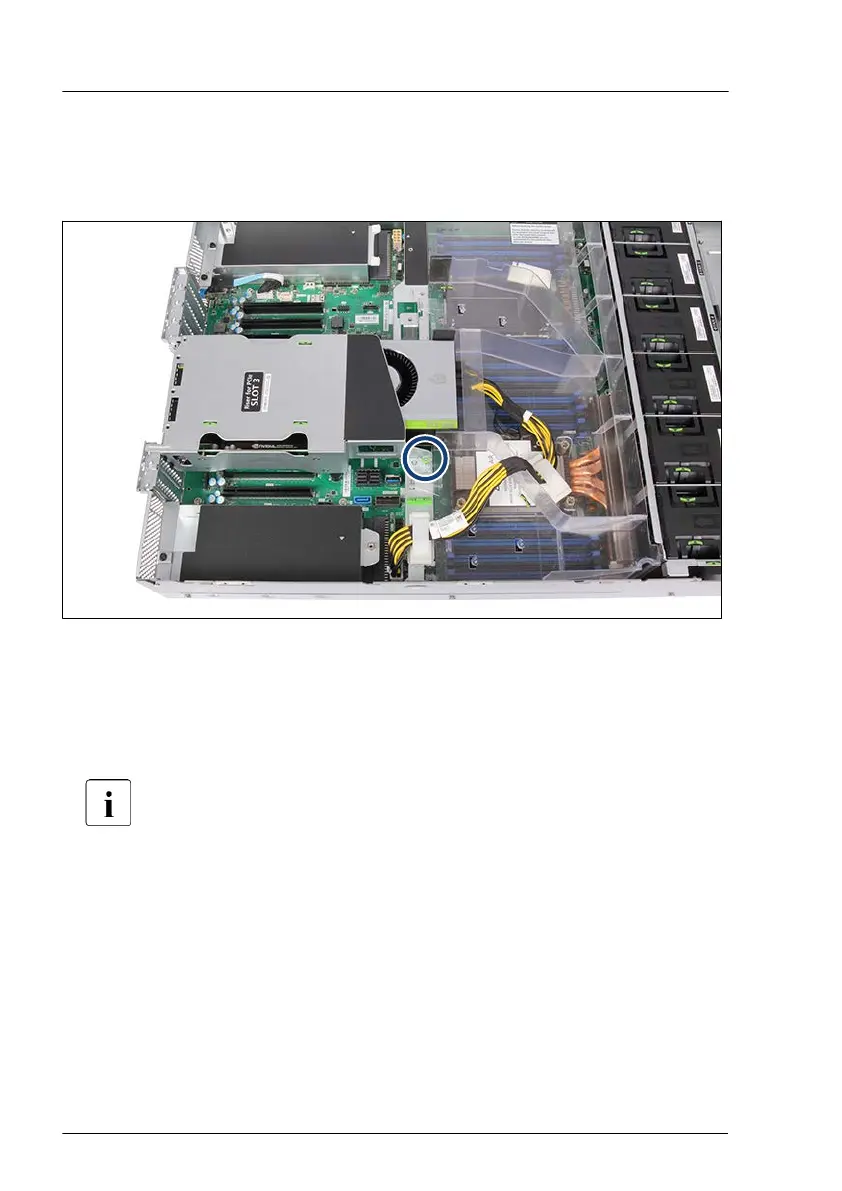

Figure 26: Installing the riser module 1
▶
Insert the riser module 1.
▶
Fasten the riser module 1 with the knurled screw (see circle).
▶
If applicable, connect internal cables to the expansion card or GPU card.
For the cable plan, see "Appendix B" on page
559.
▶
If applicable, connect an FBU cable to the RAID controller
, see "Installing
an FBU" on page 321.
Basic hardware procedures
74 Upgrade and Maintenance Manual RX2540 M7
