If applicable, "Installing the front cover with lock" on page
71.
7.8 M.2 SSD
7.8.1 Slots for M.2 SSDs on the M.2 interposer board
The M.2 interposer board offers two M.2 slots (Key M) with support for 80 mm
and 110 mm long M.2 SSDs. With the M.2 SSD an internal SSD is offered. This
SSD can be configured as a boot device or data storage device.

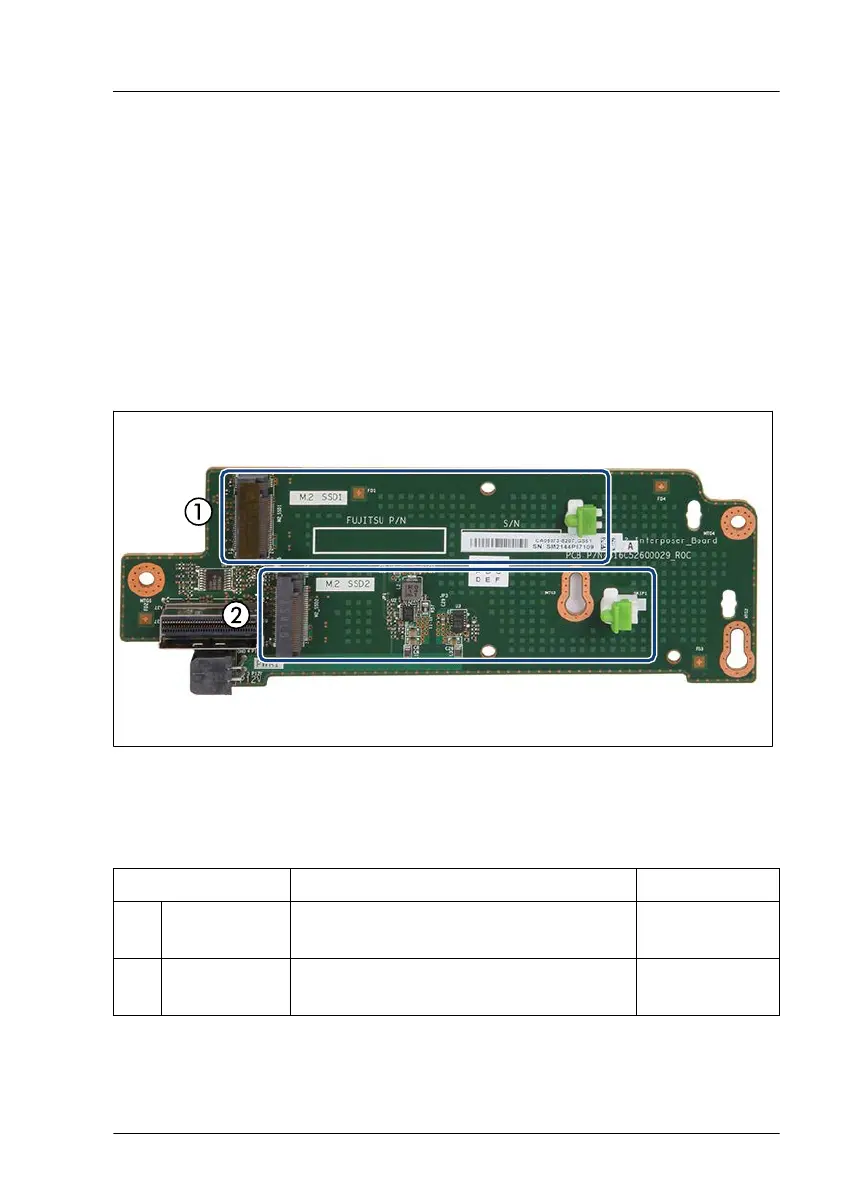

Figure 106: Slots for M.2 SSDs
1 M.2 SSD 1 2 M.2 SSD 2
(SATA mode: AHCI)
M.2 SSD slot BIOS menu iRMC SEL
1 M.2 SSD1 SATA Controller 2 - Port 4 (M.2 Slot
0)
Port 0
2 M.2 SSD2 SATA Controller 2 - Port 6 (M.2 Slot
1)
Port 1
(SATA mode: RAID)
Hard disk drive (HDD) / solid state disk (SSD)
RX2540 M7 Upgrade and Maintenance Manual 211
