4.6.4 Sliding the server into the rack

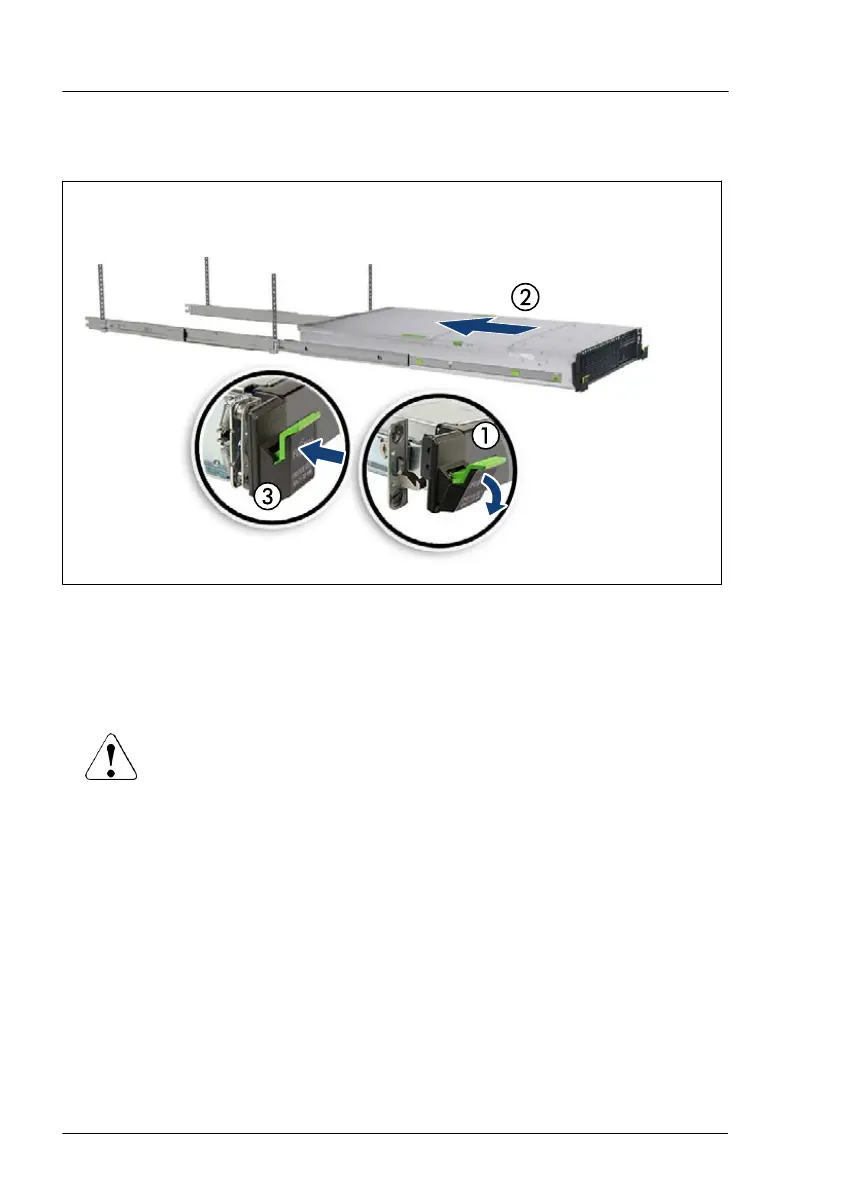

Figure 15: Sliding the server into the rack
▶
Release the locking mechanism of both rails (1).
▶
Push the server as far as it will go into the rack (2) until the two quick
release levers engage (3).
CAUTION
▶
Be careful with your fingers. You can pinch them when the quick
release levers change to the release position.
▶
Connect all cables except the power cord to the server rear
.
Basic hardware procedures
64 Upgrade and Maintenance Manual RX2540 M7
