Fujitsu PRIMERGY RX2540 M7

Installing a 2.5-inch PCIe SSD module

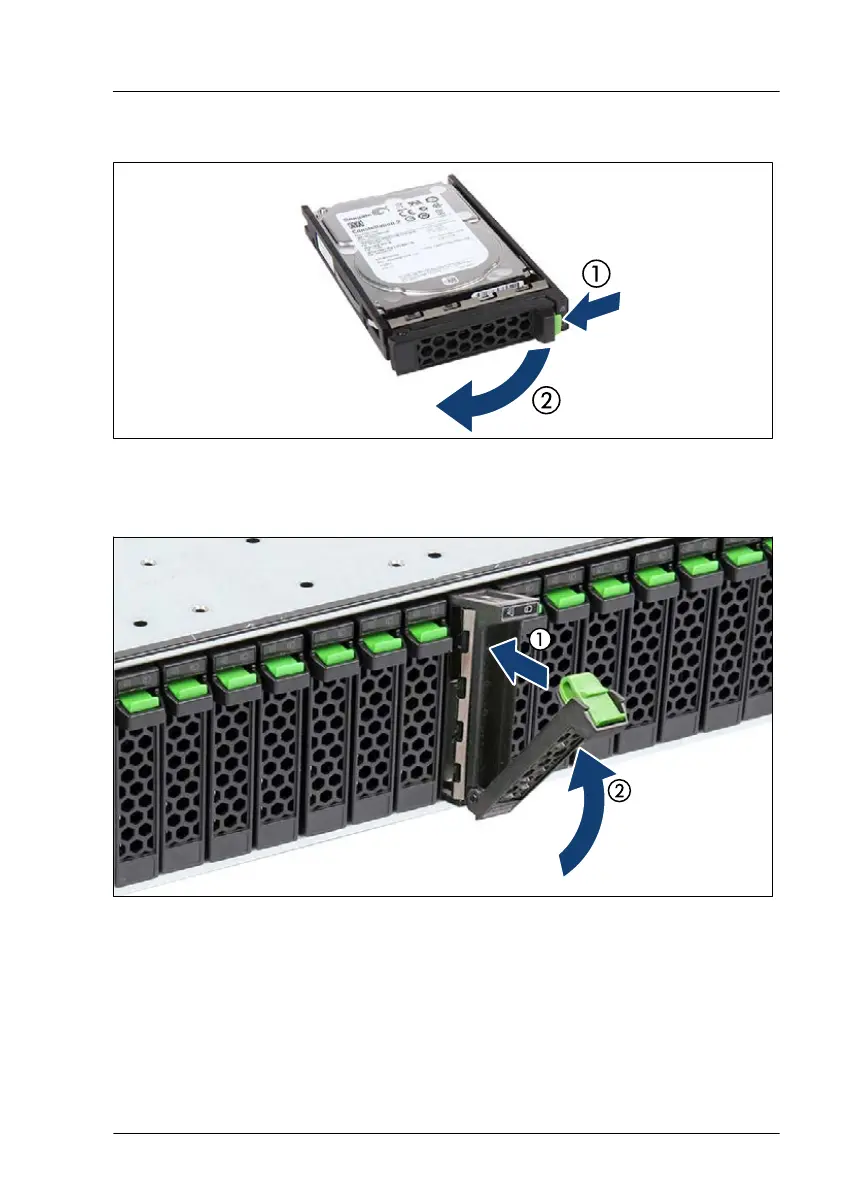

Figure 85: Opening the locking lever
▶
Pinch the green locking clips (1) and open the locking lever (2).
Figure 86: Installing the 2.5-inch PCIe SSD module
▶
Insert the PCIe SSD module into a drive bay and carefully push back as far
as it will go (1).
▶
Close the locking lever to lock the PCIe SSD module in place (2).
Hard disk drive (HDD) / solid state disk (SSD)
RX2540 M7 Upgrade and Maintenance Manual 187
