If applicable, "Removing the front cover with lock" on page
49.
▶
"Shutting down the server" on page 50.
▶
"Disconnecting the power cord" on page 50.
▶
"Getting access to the component" on page 55.
▶
"Removing the rear air grid 1" on page 85.
▶
"Removing the rear air grid 2" on page 86.
Installing the rear HDD cage 1 and the rear HDD cage 2

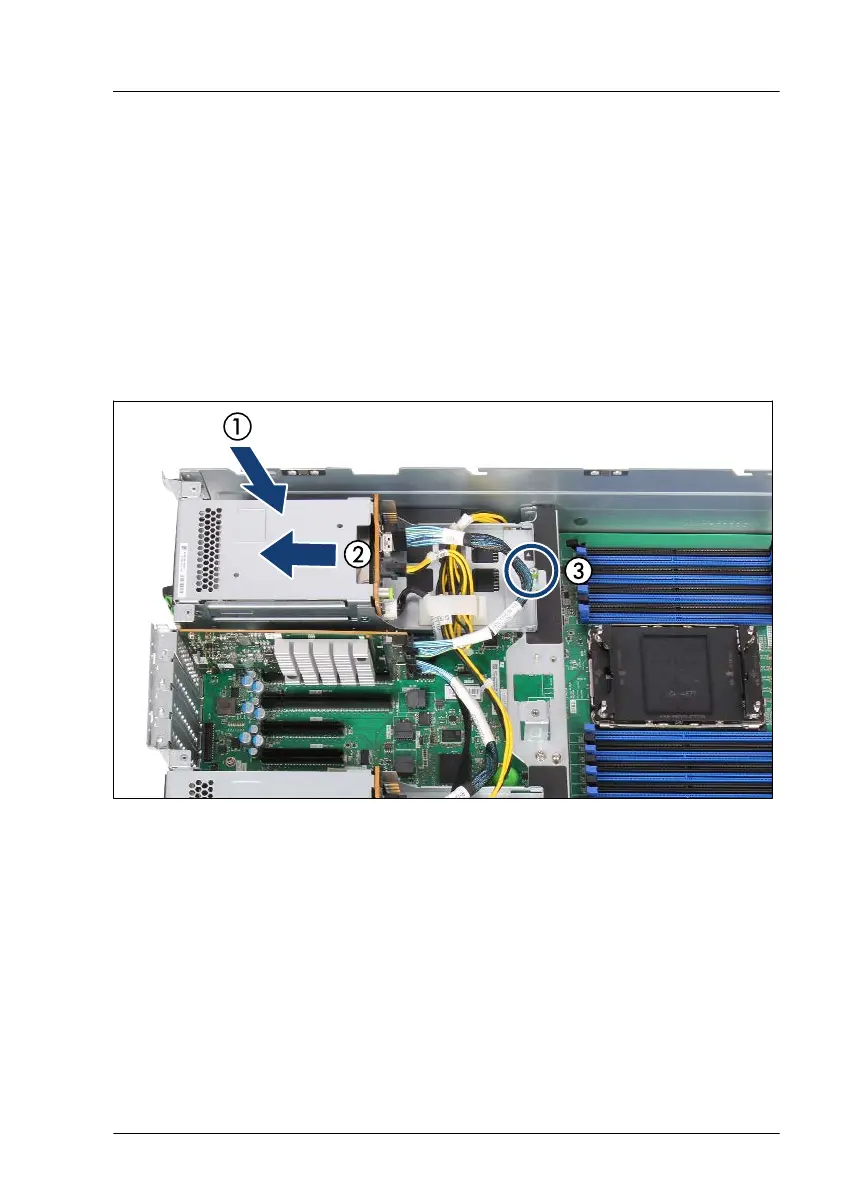

Figure 116: Installing the rear HDD cage 1
▶
Position the rear HDD cage 1 into the chassis (1).
▶
Push the rear HDD cage 1 in the direction of the arrow (2).
▶
Fasten the knurled screw (3).
▶
If applicable, install a RAID controller or a retimer card, see "Installing an
expansion card" on page
269.
Hard disk drive (HDD) / solid state disk (SSD)
RX2540 M7 Upgrade and Maintenance Manual 229
