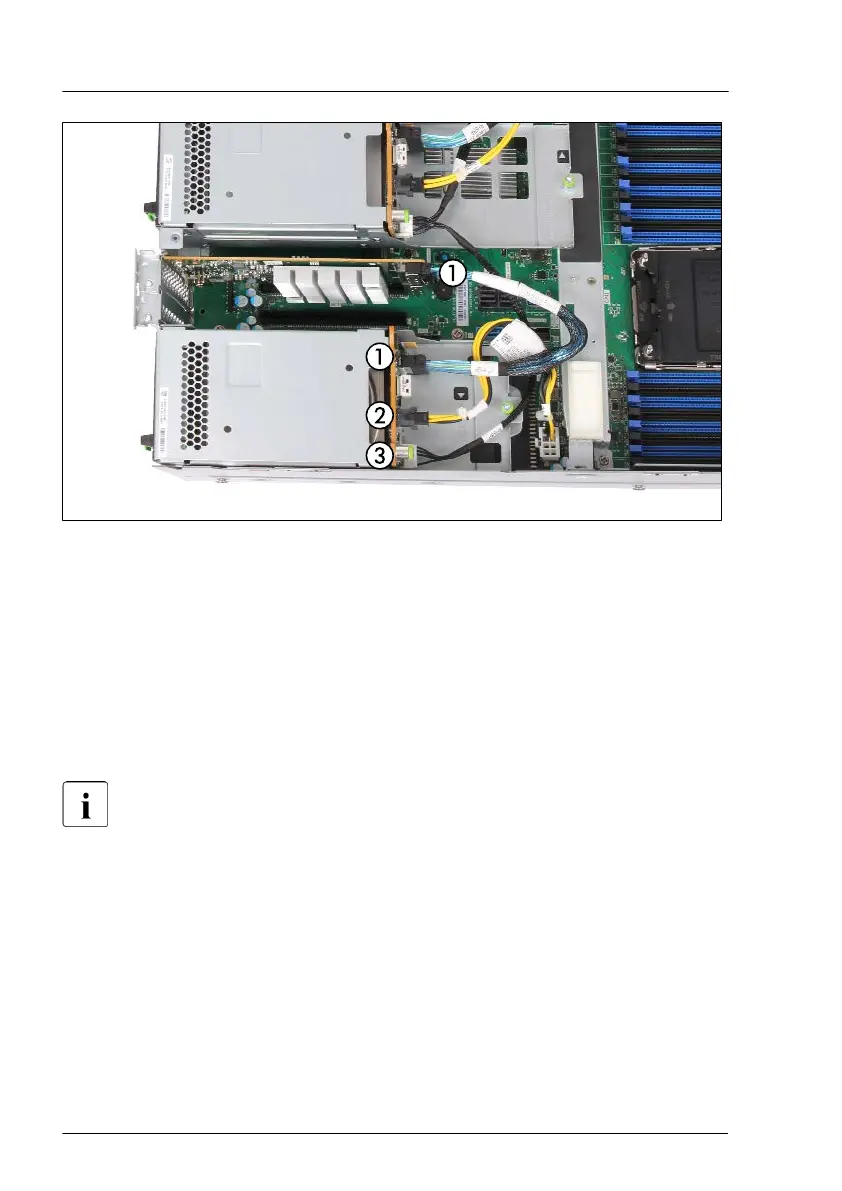

Figure 119: Connecting the cables to the rear HDD backplane (example with slimline cable)
▶
Connect the following cables to the rear HDD backplane:
1 SAS/SATA cable depending on configuration
2 Power cable to HDD backplane and connector "PWR7" on system
board
3 OOB cable to HDD backplane and connector "SMB3" on system
board
For the cable plan, see chapter "Appendix B" on page
559.
Installing additional HDD/SSD/PCIe SSD modules
▶
Insert additional HDD/SSD modules, see "Installing 2.5-inch HDD/SSD
modules" on page
177 or PCIe SSD modules, see "Installing 2.5-inch PCIe
SSD modules" on page 185.
