"Removing the rear air grid 2" on page
86.
Installing the rear HDD cage 3

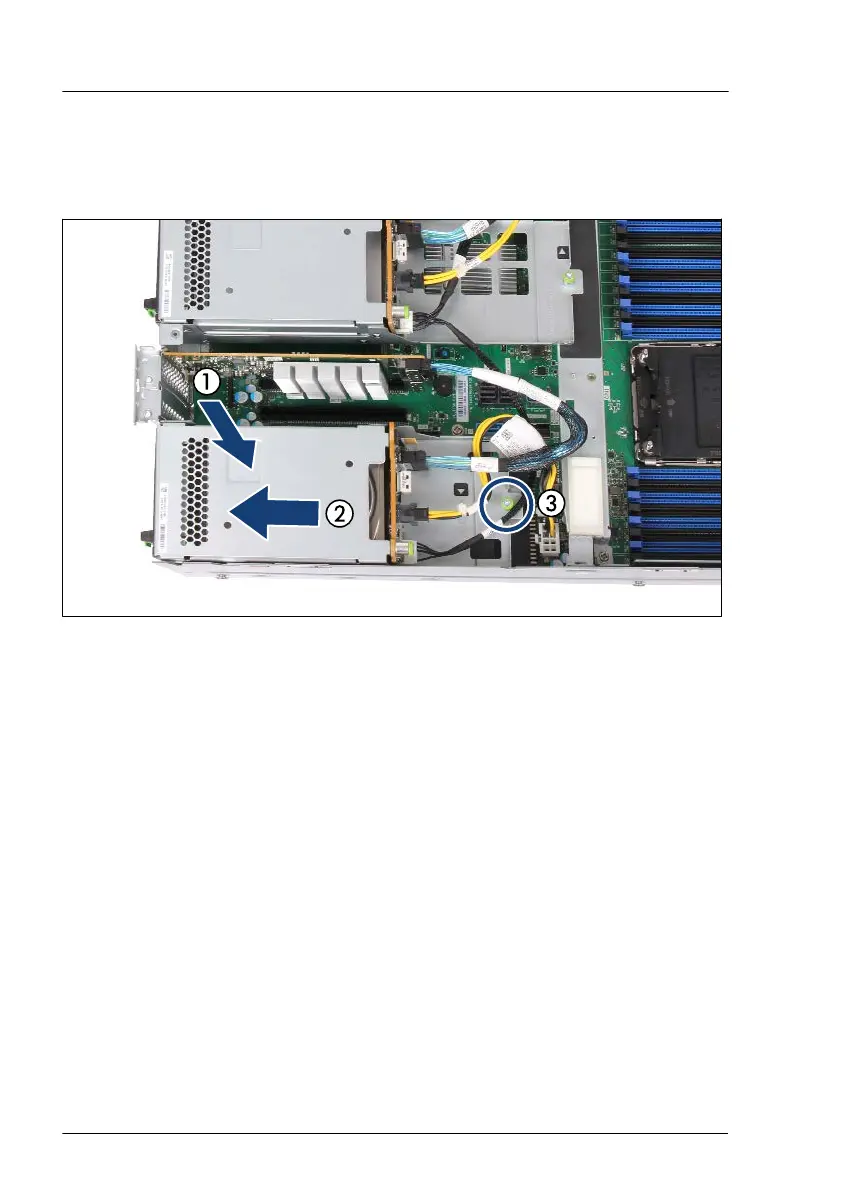

Figure 120: Installing the rear HDD cage 3
▶
Position the rear HDD cage 3 into the chassis (1).
▶
Push the rear HDD cage 3 in the direction of the arrow (2).
▶
Fasten the knurled screw (3).
▶
If applicable, install a RAID controller or a retimer card, see "Installing an
expansion card" on page
269.
Hard disk drive (HDD) / solid state disk (SSD)
234 Upgrade and Maintenance Manual RX2540 M7
