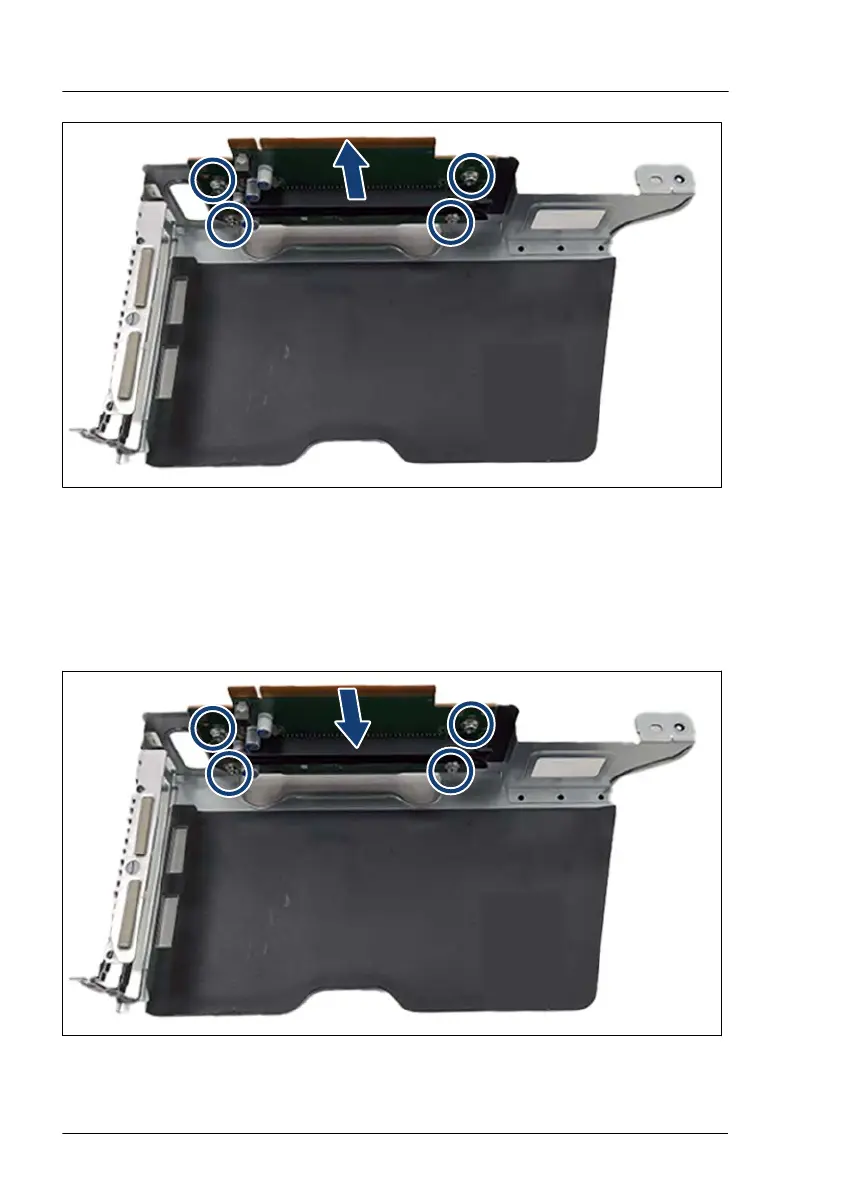

Figure 167: Removing the riser card
▶
Remove the four screws (see circles).
▶
Remove the riser card.
Installing the new riser card
Figure 168: Installing the riser card
Expansion cards and backup units
296
Upgrade and Maintenance Manual
RX2540 M7
295
297
