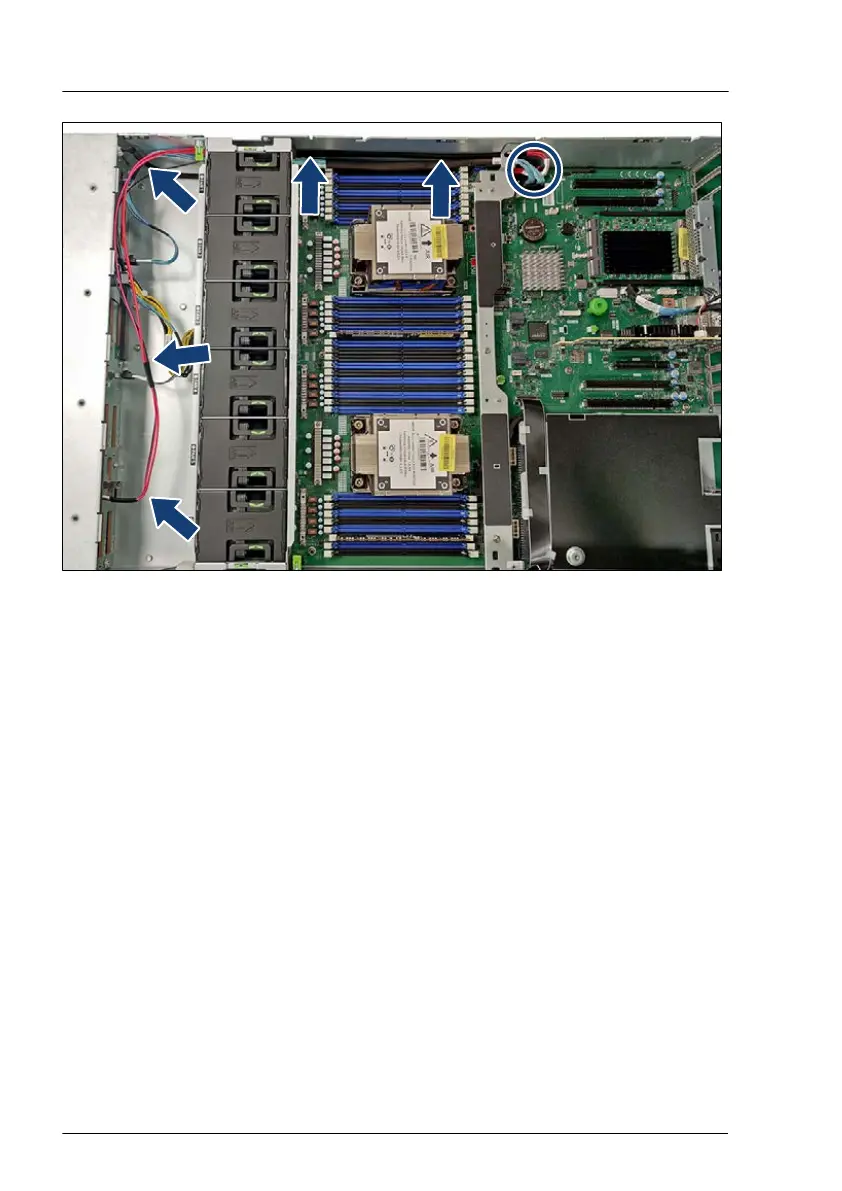

Figure 263: Routing of the ODD cable to the system board
▶
Route the ODD cable as shown.
▶
Connect the ODD cable to the connector "PWR ODD" on the system board
(see circle).
Concluding steps
▶
"Installing the fan cage" on page
77.
▶
"Reassembling" on page 59.
▶
"Connecting the power cord" on page 65.
▶
"Switching on the server" on page 71.
▶
If applicable, "Installing the front cover with lock" on page 71.
▶
"Resuming BitLocker functionality" on page 107.
Accessible drives
410 Upgrade and Maintenance Manual RX2540 M7
