Chapter 3 - Setup Instructions 3-49
8C-RS Pediatrics,
Neonatal
B, CHI, CF, PDI, M, Anatomical M, PW,
CrossXBeam, LOGIQView, ATO/ASO,
SRI-HD, Advanced 3D
5499508 Convex
1 1
L6-12-RS Abdomen,
Vascular
(No transcranial),
Small Parts,
Pediatric, Neonatal
B, CHI, CF, PDI, M, Anatomical M, PW,
B-Flow, B-Flow Color, Elastography,
Virtual Convex, CrossXBeam,
LOGIQView, ATO/ASO, SRI-HD,
Advanced3D, Biopsy
5454332 Linear
11
6S-RS Cardiac,
Pediatrics,
Neonatal
B, CHI, CF, PDI, M, MCF, Anatomical M,
PW, CW, TVI, TVD, Virtual Convex,
LOGIQView, ATO/ASO, SRI-HD,
Advanced3D
5499316 Sector
11
L4-12t-RS
Small Parts,
Vascular,
Pediatric,
Neonatal,
Musculoskeletal
B, CHI, CF, PDI, M, PW, B-Flow, B-Flow
Color, Elastography, Virtual Convex,
CrossXBeam, LOGIQView, ATO/ASO,
Auto TGC, SRI-HD, Advanced 3D,
Biopsy, B Steer+
5435010 Linear
11
L10-22-RS
(LP9 only)
Small Parts,
Musculoskeletal,
Neonatal
B, CHI, CF, PDI, M, PW, B-Flow, B-Flow
Color, Virtual Convex,CrossXBeam,
LOGIQView, ATO/ASO,Auto TGC,
SRI-HD, Advanced 3D,B Steer+
5459953 Linear
1 1
12S-RS Pediatrics,
Neonatal
B, CHI, CF, PDI, M, MCF, Anatomical M,
PW, CW, TVI, TVD, Virtual Convex,
LOGIQView, ATO/ASO, Auto TGC, SRI-
HD, Advanced3D
5499321 Sector
1 1
E8CS-RS
OB/GYN
(Transvaginal),
Urology
(Transrectal)
B, CHI, CF, PDI, M, PW, B-Flow, B-Flow
Color, CrossXBeam,LOGIQView, ATO/
ASO, Auto TGC,SRI-HD, Advanced 3D,
Biopsy
5670375 Convex
1 1

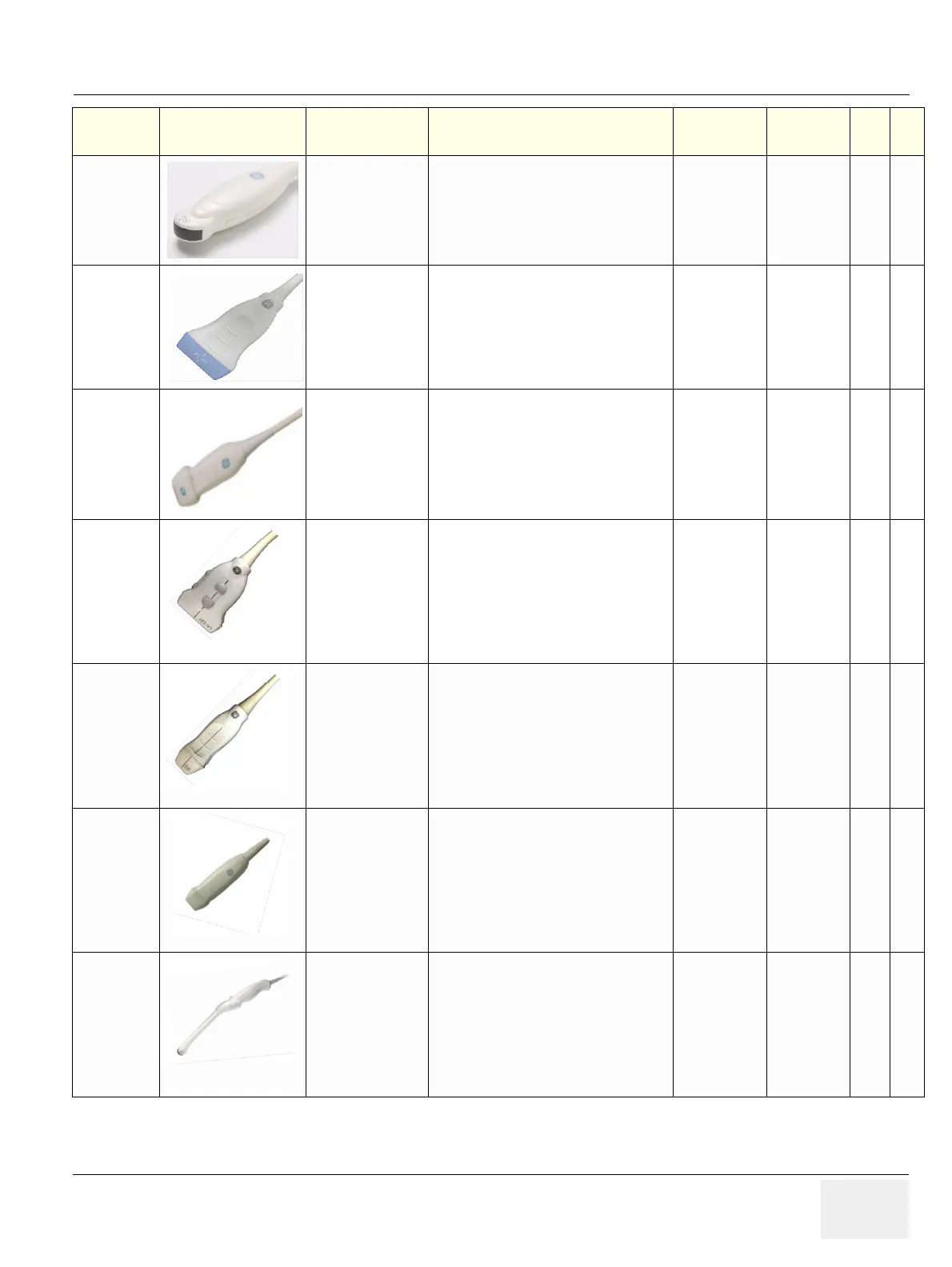

Part Name Illustration Application Feature
Part
Number
Probe
Type
Qty
FR
U

GE LOGIQ P9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Elastography	Yes
Connectivity	DICOM, USB, Ethernet, HDMI
Doppler Modes	Color Doppler, Power Doppler
Probes	convex, linear, phased array
Imaging Modes	M-Mode, Color Doppler, Power Doppler
Portability	Cart-based
Applications	Vascular, Cardiac, OB/GYN, Musculoskeletal
Weight	Approx. 80 kg
Touch Panel	10.1-in touchscreen
