3-50 Section 3-10 - Available Probes
BE9CS-RS
Urology
(Transrectal)
B, CHI, CF, PDI, B-Flow, B-Flow Color,
M, Anatomical M, PW, CrossXBeam,
LOGIQView, ATO/ASO, SRI-HD,
Advanced 3D, Biopsy
5589323 Convex
11
IC9-RS
OB/GYN
(Transvaginal),
Urology
(Transrectal)
B, CHI, CF, PDI, M, PW, B-Flow, B-Flow
Color, CrossXBeam,LOGIQView,
ATO/ASO, Auto TGC, SRI-HD,
Advanced 3D, Biopsy
5722023 Convex
11
RIC5-9A-RS OB/GYN
(Transvaginal),
Urology
(Transrectal)
B, CHI, CF, PDI, M, Anatomical M, PW,
CrossXBeam, LOGIQView, ATO/ASO,
SRI-HD, Advanced3D, 3D/4D, Biopsy
KTZ304128
Volume
(Real
Time 4D,
Convex)
11
L12n-RS
Small Parts,
Vascular, Pediatric,
Neonatal,
Musculoskeletal
B, CHI, CF, PDI, M, PW, B-Flow, B-Flow
Color, Elastography, Virtual Convex,
CrossXBeam, LOGIQView, ATO/ASO,
Auto TGC, SRI-HD, Advanced 3D,
Biopsy, B Steer+
5505771 Linear
1 1
P6D
Cardiac, Vascular CW, ASO
5729437
Pencil
Probe
(CW Split
Crystal)
1 1
P2D
Cardiac, Vascular CW, ASO
TE100024
Pencil
Probe
1 1
L3-9i-RS
(LP9 only)
Small Parts,
Vascular,
Musculoskeletal,
Intraoperatives
B, CHI, CF, PDI, M, PW, B-Flow, B-Flow
Color, Virtual Convex,CrossXBeam,
LOGIQView, ATO/ASO,Auto TGC, SRI-
HD, Advanced 3D,B Steer+
5721640 Linear
11

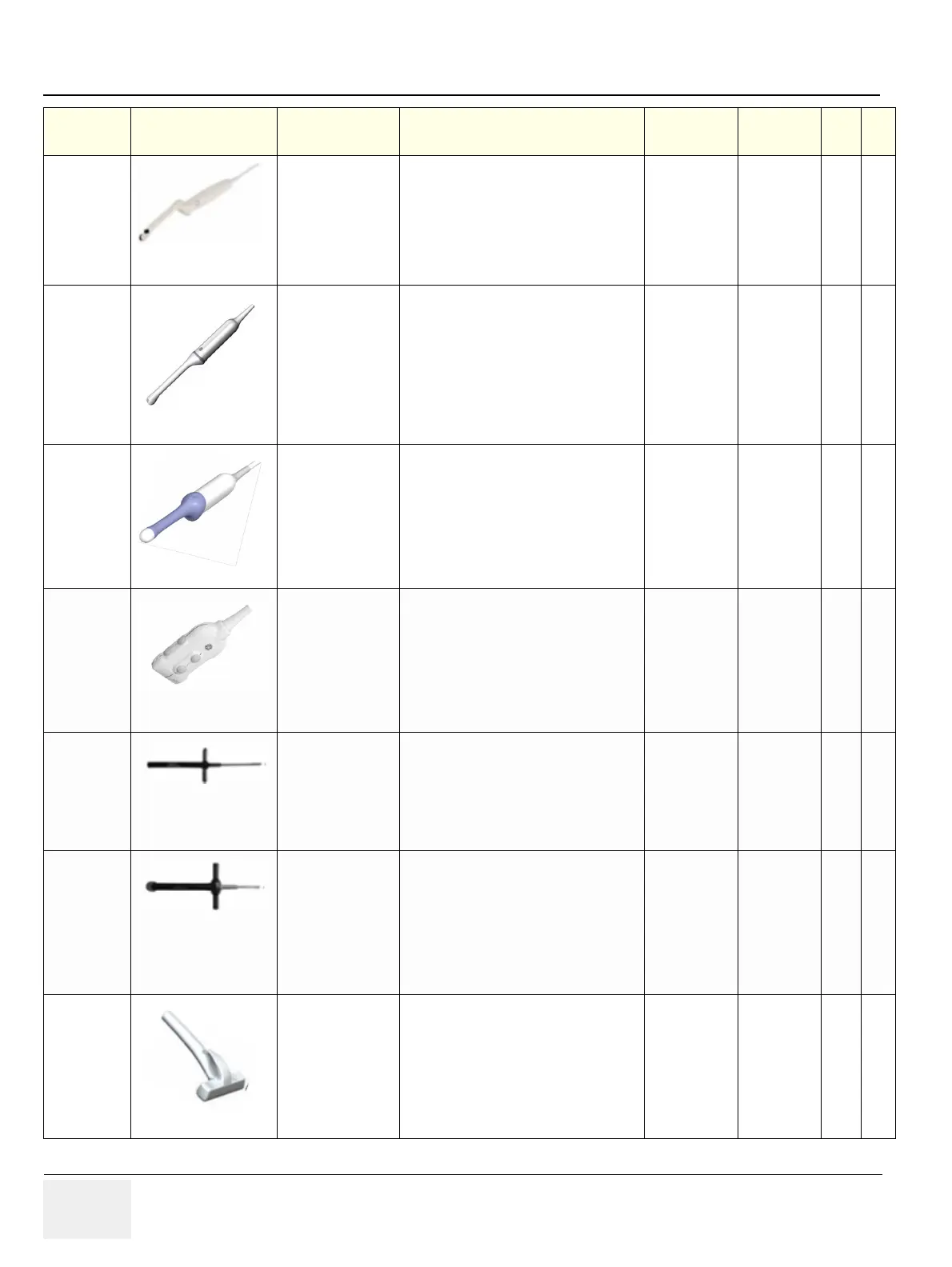

Part Name Illustration Application Feature
Part
Number
Probe
Type
Qty
FR
U

GE LOGIQ P9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Elastography	Yes
Connectivity	DICOM, USB, Ethernet, HDMI
Doppler Modes	Color Doppler, Power Doppler
Probes	convex, linear, phased array
Imaging Modes	M-Mode, Color Doppler, Power Doppler
Portability	Cart-based
Applications	Vascular, Cardiac, OB/GYN, Musculoskeletal
Weight	Approx. 80 kg
Touch Panel	10.1-in touchscreen
