8-14 Section 8-3 - System Software - Installation/Upgrade Procedure
8-3-5-2-1-6 Connectivity - Recording Dataflow settings
1) From the touch panel, select Utility -> Connectivity -> Dataflow.

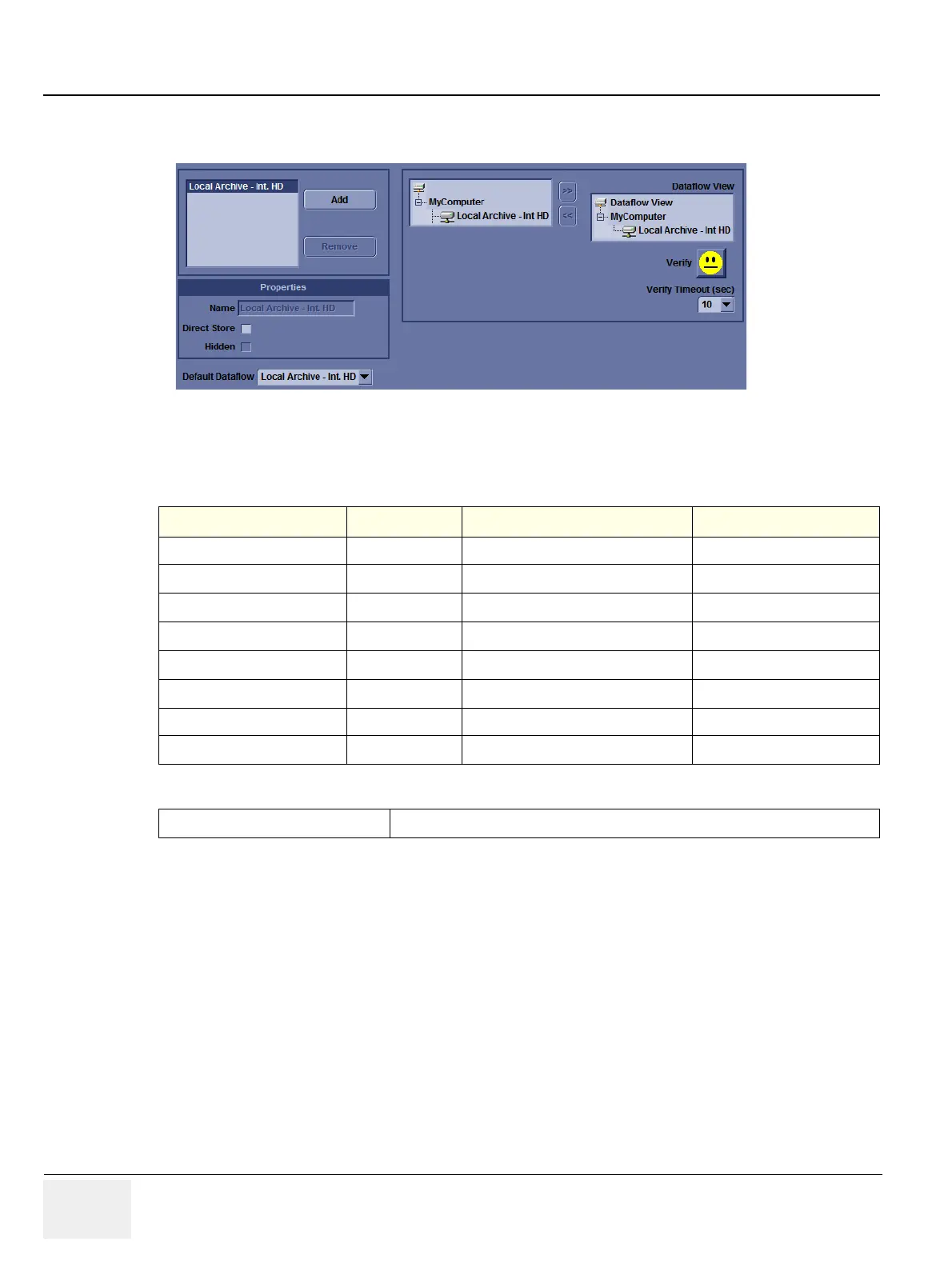

Figure 8-6 Connectivity - Recording Dataflow settings
2) Record all settings in Table 8-9 for each Destination Device and Service.
Table 8-9 Record settings from Dataflow screen
Properties Name Direct Store Dataflow Verify Timeout (sec)
ON / OFF
ON / OFF
ON / OFF
ON / OFF
ON / OFF
ON / OFF
ON / OFF
ON / OFF
Table 8-10 Record settings from Dataflow screen 2
Default Dataflow
