GEDRAFT LOGIQ P9/P7
D
IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-39
6.) In “Boot” page, Change “Boot Option #1” to USB memory which is inserted.
NOTE: The name of USB memory can be displayed different depend on the inserted USB memory.
7.) After changed the “Boot Option#1,” save the BIOS set and exit by pressing ‘F10’ key.

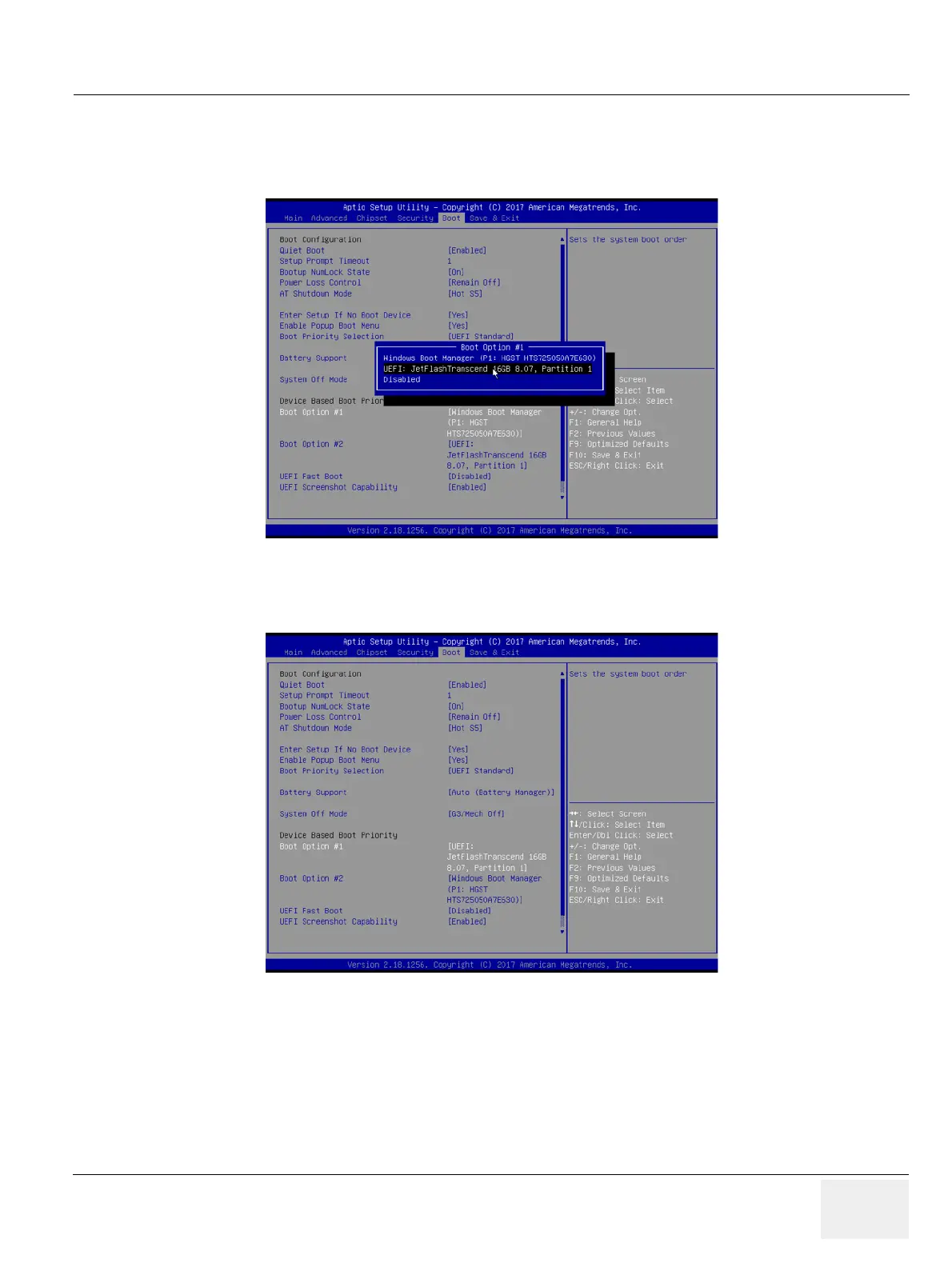

Figure 8-21 “Boot” page 1
Figure 8-22 “Boot” page 2
To Next Page
