GEDRAFT LOGIQ P9/P7

IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL

Chapter 8 - Replacement Procedures 8-85

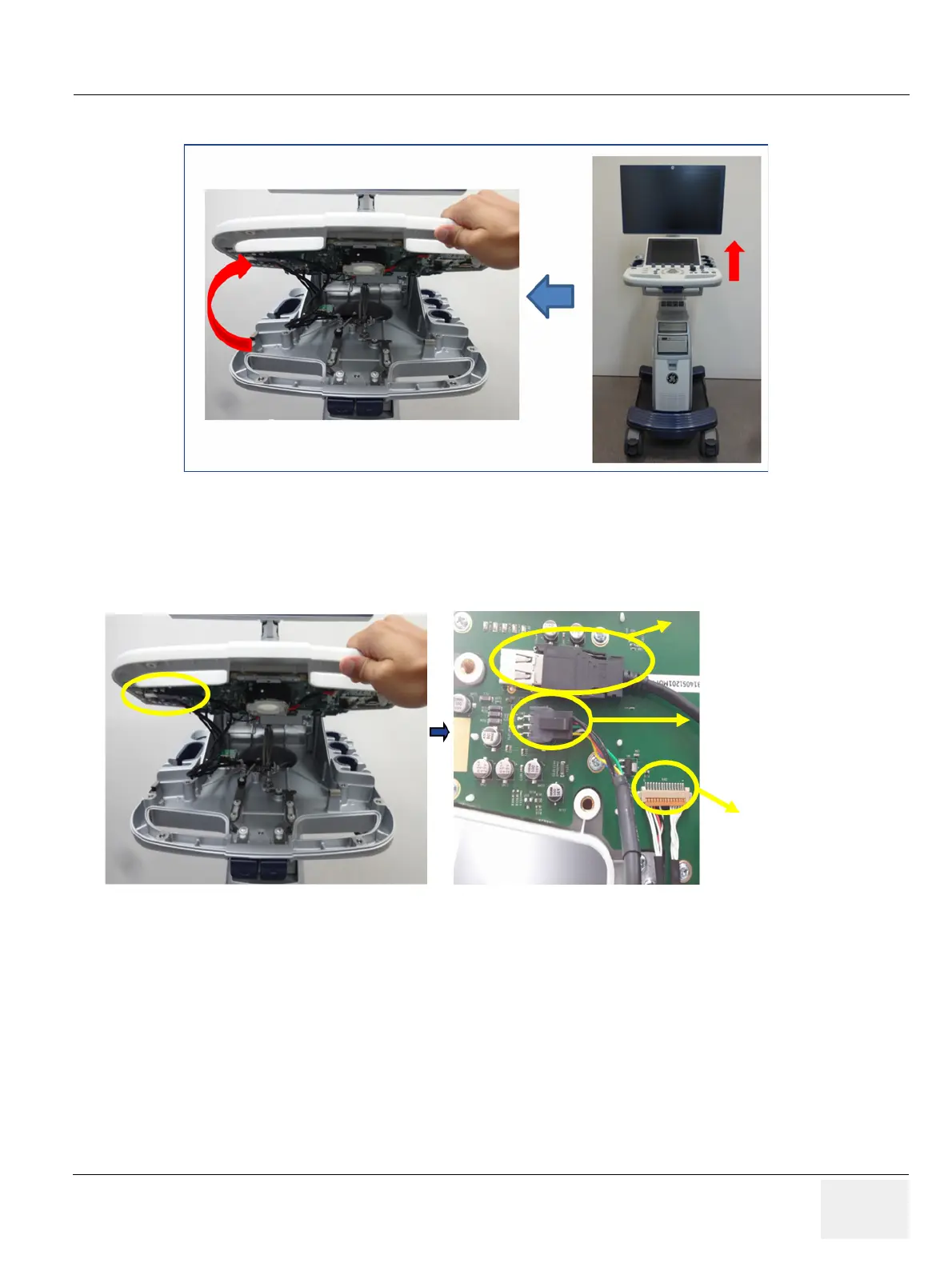

4) Lift OP Panel.

Figure 8-78 Lift OP Panel

5) Remove USB locking type Cable

6) Remove OPIO Power cable.

7) Remove USB locking type connector.

Figure 8-79 Removal of connectors

8) OP Panel can now be separated from the console.

USB locking type Cable

OPIO Power cable

GEL & AN KEY

Cable
