GEDRAFT LOGIQ P9/P7

IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL

Chapter 8 - Replacement Procedures 8-185

3) Unscrew 5 screws and remove REAR CABLE COVER BRKT.

4) Remove CABLES (RED CIRCLE) and unscrew 7 screws, then remove NEST EMI BACK BKRT.

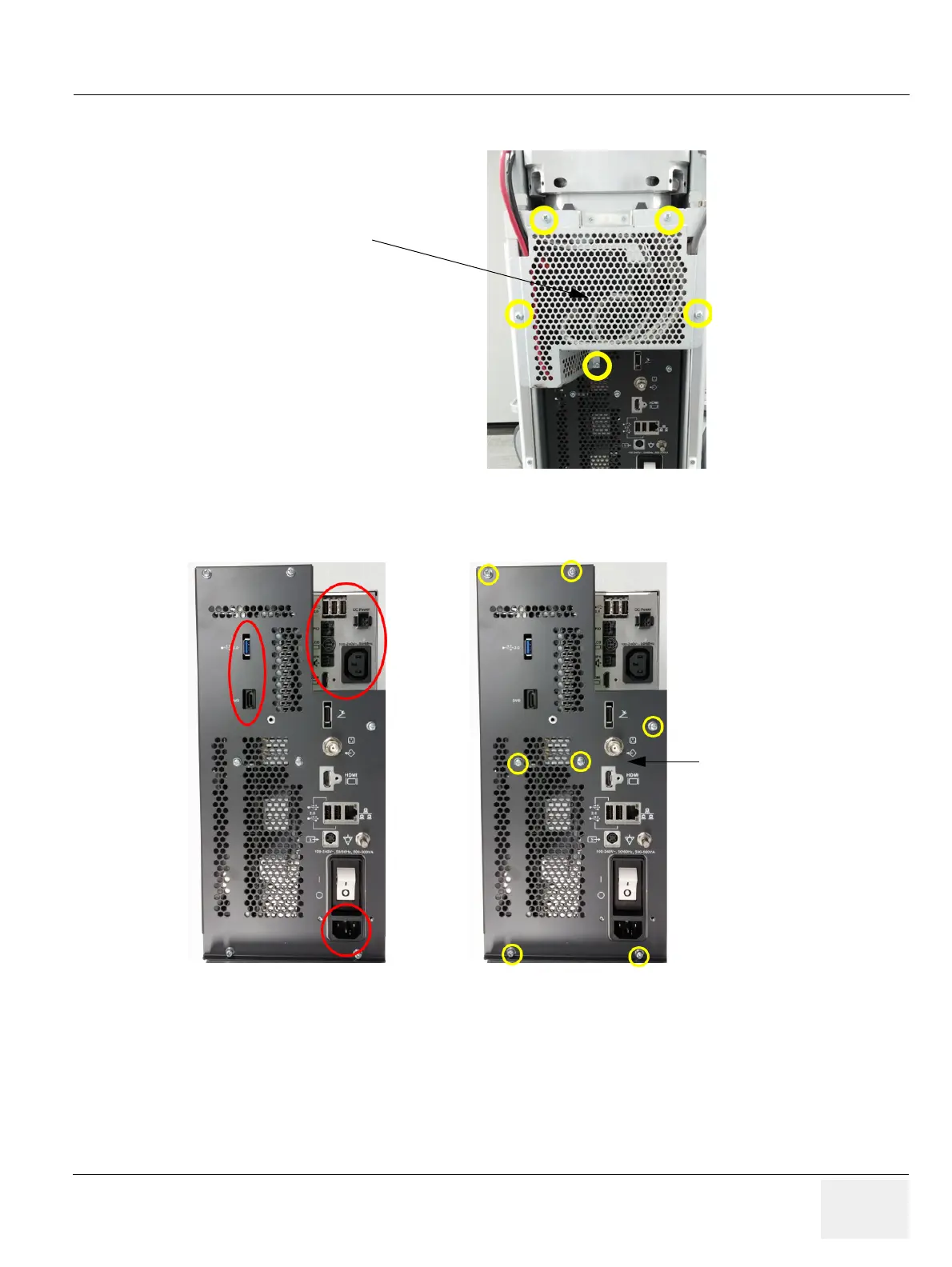

Figure 8-227 Unscrewing 5 screws

Figure 8-228 Removing CABLES (RED CIRCLE) and unscrewing 7 screws

REAR CABLE COVER BRKT

NEST EMI

BACK BRKT
