GERAFT LOGIQ P9/P7

IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL

8-186 Section 8-47 - Replacement of MBOB

5) Draw IO BOX from NEST FRAME.

6) Unscrew 12 screws and remove MIO BOX BRKT.

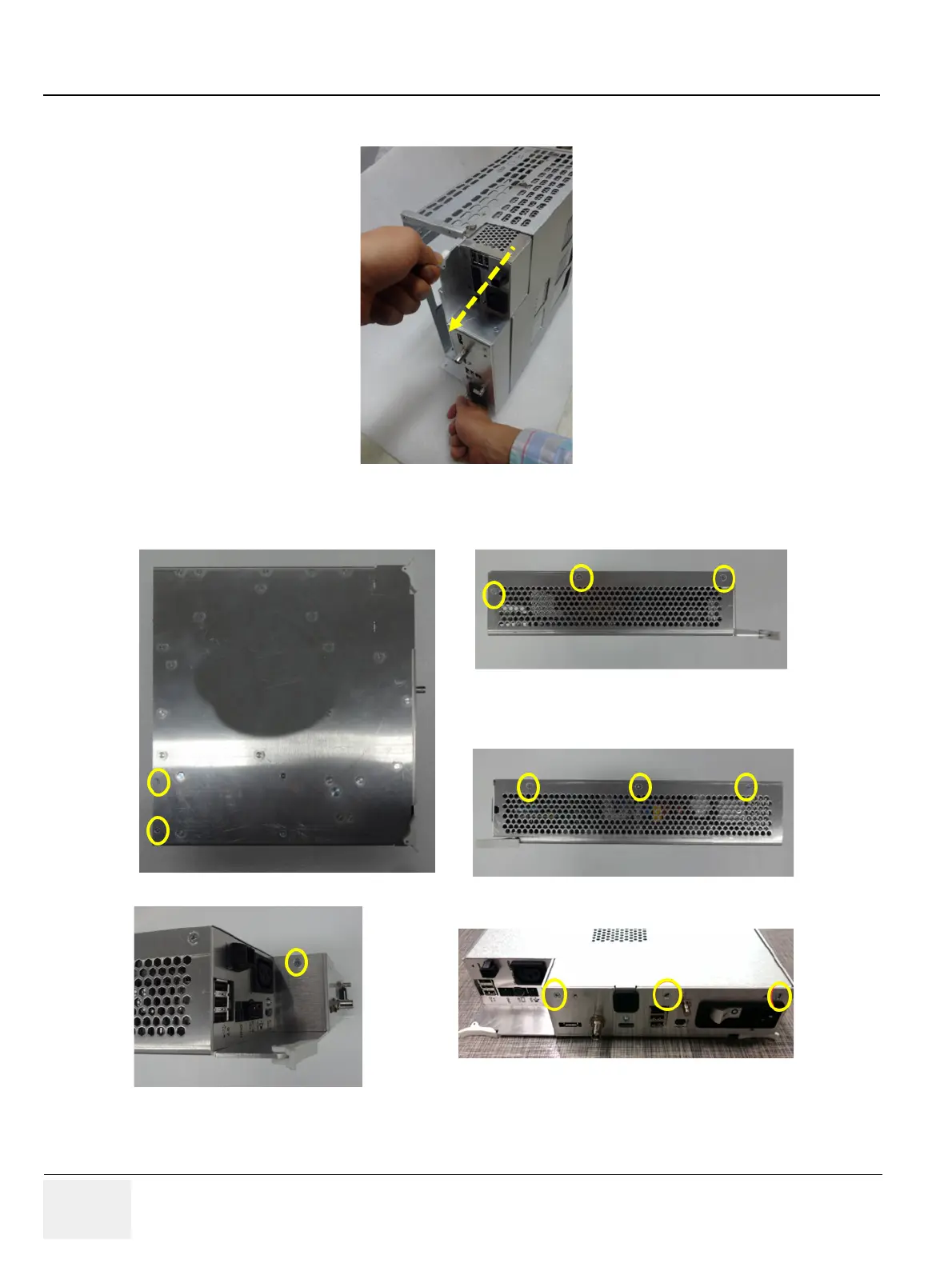

Figure 8-229 Drawing IO BOX from NEST FRAME

Figure 8-230 Unscrewing 12 screws
