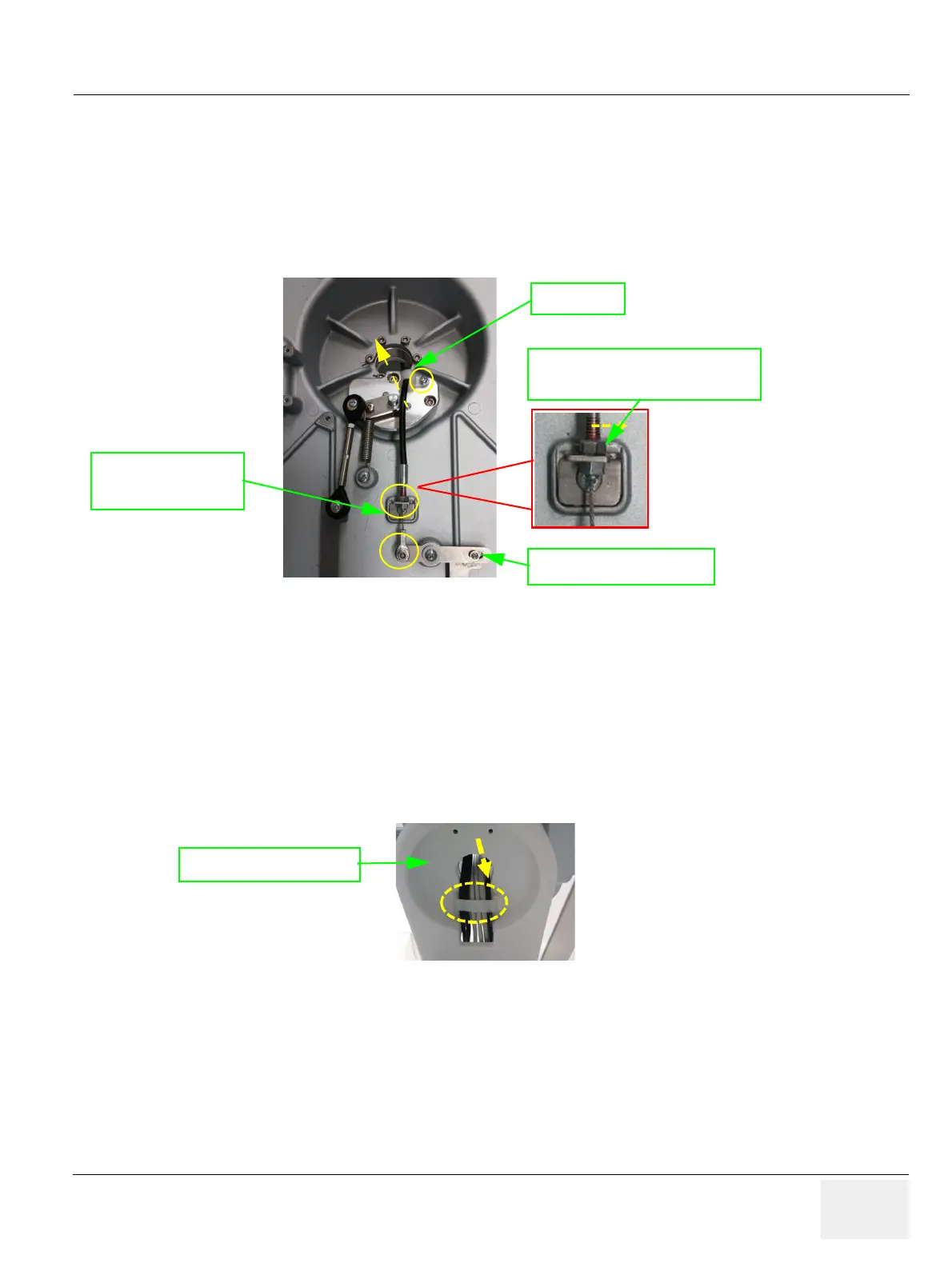

4.) Unscrew nut and unfix the cable wire from the UP DOWN LINK BRKT.
5.) Unscrew nut and unfix the cable wire from the CABLE WIRE FIX BRKT.
6.) Unscrew 1 screw and remove the P CLAMP, and then extract out the cable through hole of the
OPIO base.
7.) Unlock CABLE CLAMP, and then extract out the all cables from the OPIO base and the UP DOWN
LINK ARM.
CABLE WIRE FIX
BRKT
P CLAMP
Unscrew the one nut and extract
out the cable
UP DOWN LINK BRKT
1
2
3
UP DOWN LINK ARM
