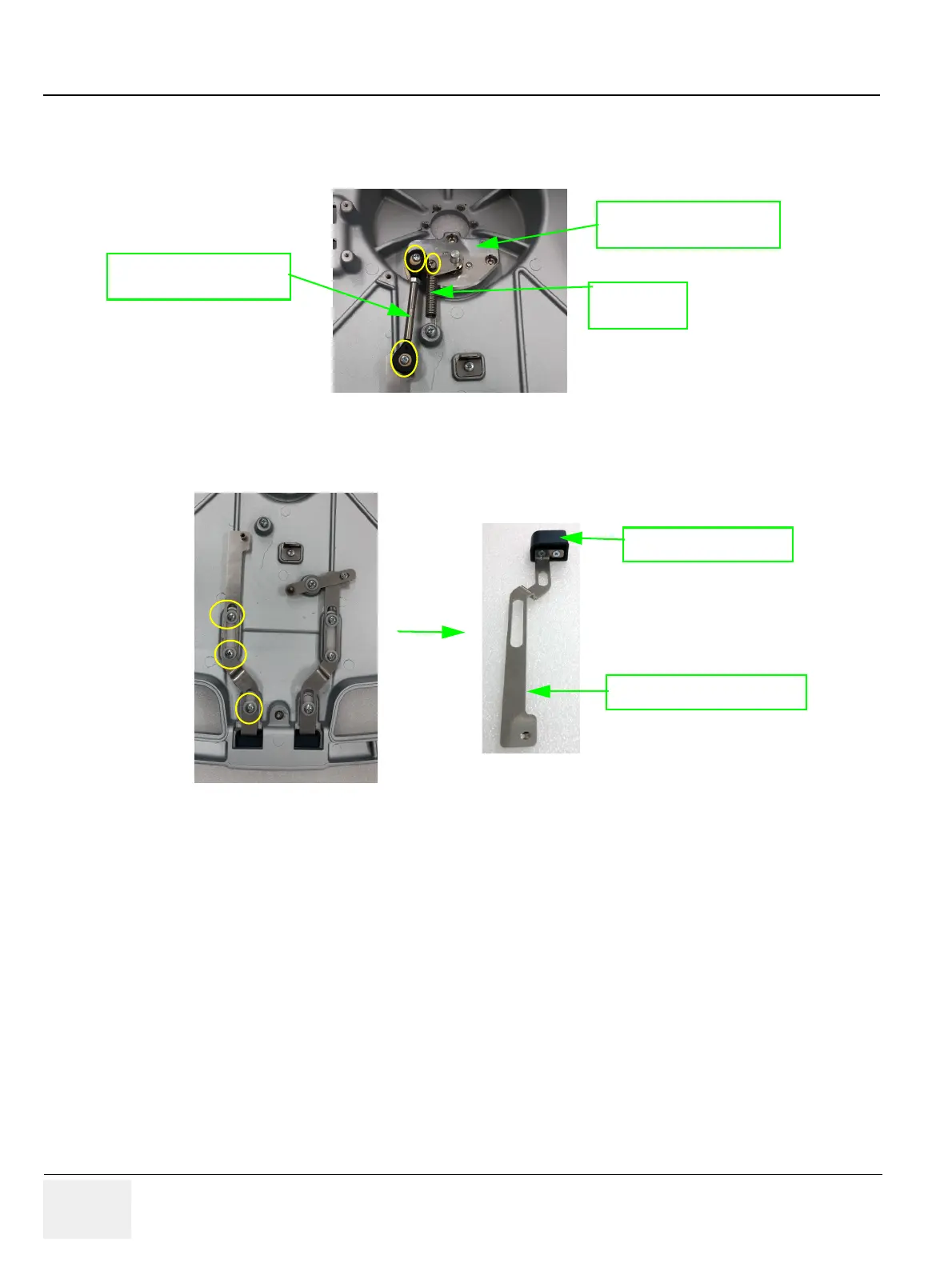

8-200 Section 8-50 - Replacement of LOGIQ P9 ROTATION MODULE KIT
8.) Unscrew 3 screws and remove the TURN BUCKLE SET and SPRING from the ROTATION
MODULE ASSY.
9.) Unscrew 3 screws and remove the ROTATE LEVER BRKT from OPIO base.
10.)Unscrew 2 screws and remove the ROTATION BUTTON from RATATE LEVER BRKT.
11.)Unscrew 3 screws and remove the ROTATION MODULE ASSY from the OPIO base.
TURN BUCKLE SET
ROTATION MODULE
SPRING
ROTATION BUTTON
ROTATE LEVER BRKT
