Chapter 3 - Setup Instructions 3-29
5) After complete power down, disconnect the main power cable from the system or unplug it from the
AC wall outlet socket.
6) Press on the brakes to block the front caster wheels.
7) Disconnect probes. (Turn the probe locking handle counterclockwise and then pull the connector
straight out of the probe port.)

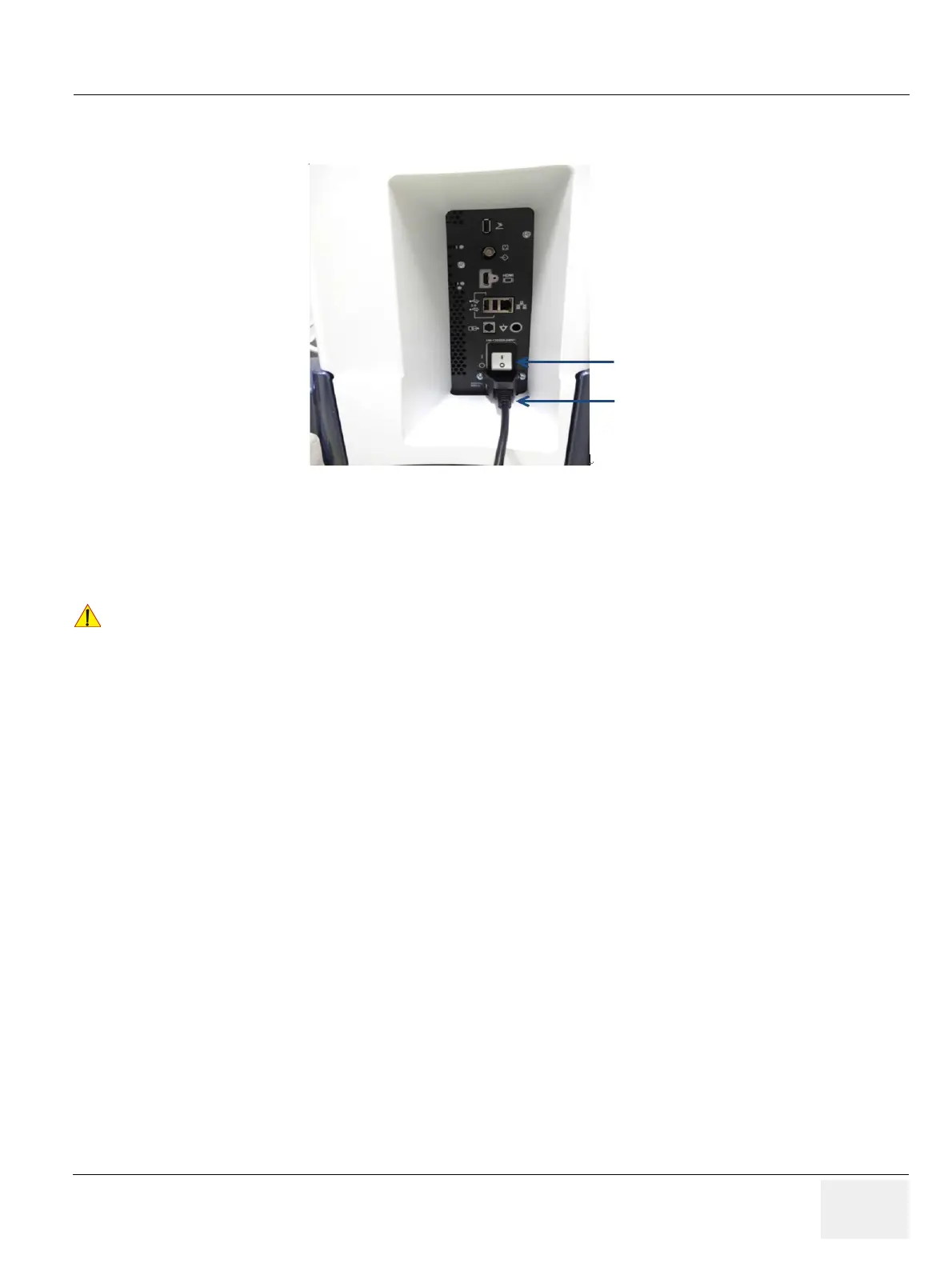

Figure 3-17 Circuit and main power at rear of system
CAUTION
!! CAUTION:
DO NOT disconnect a probe while running (Live Scan “Write” mode)!
A software error may occur. In this case switch the unit OFF (perform a reset).
Circuit Breaker
Main Power

GE LOGIQ P9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Elastography	Yes
Connectivity	DICOM, USB, Ethernet, HDMI
Doppler Modes	Color Doppler, Power Doppler
Probes	convex, linear, phased array
Imaging Modes	M-Mode, Color Doppler, Power Doppler
Portability	Cart-based
Applications	Vascular, Cardiac, OB/GYN, Musculoskeletal
Weight	Approx. 80 kg
Touch Panel	10.1-in touchscreen
