102 E3 Series Installation/Operation Manual — P/N 9000-0574:I 11/04/10
E3 Series System Connections Intelligent Loop Interface XP95-Main Board Connections
3.3 Intelligent Loop Interface XP95-Main Board Connections

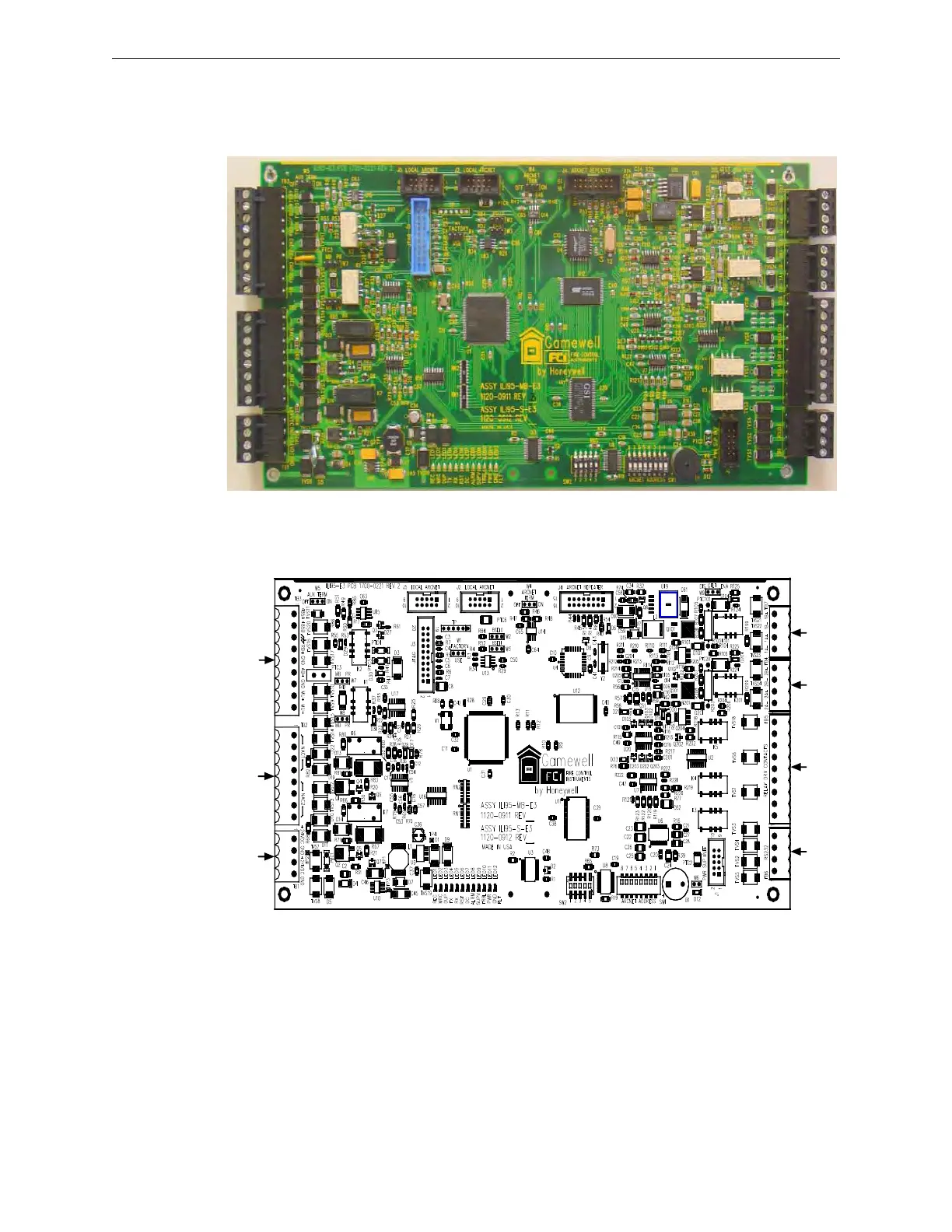

Figure 3.3.1 and Figure 3.3.2 illustrate the Intelligent Loop Interface XP95 - Main Board
(ILI95-MB-E3) sub-assembly.
Figure 3.3.1 Intelligent Loop Interface XP95-Main Board (ILI95-MB-E3)
Sub-Assembly
Figure 3.3.2 Intelligent Loop Interface XP95-Main Board (ILI95-MB-E3) Sub-Assembly
TB3
TB2
TB1
TB7
TB4
TB5
TB6
