Honeywell Gamewell-FCI E3 Series - 2.5.10.5 Cabinet D, E3-INCC-D Plate Installation

E3 Series Installation/Operation Manual — P/N 9000-0574:I 11/04/10 81
Cabinets Installation
2.5.10 Cabinet D Installation Instructions
The Cabinet D assembly typically houses the following:

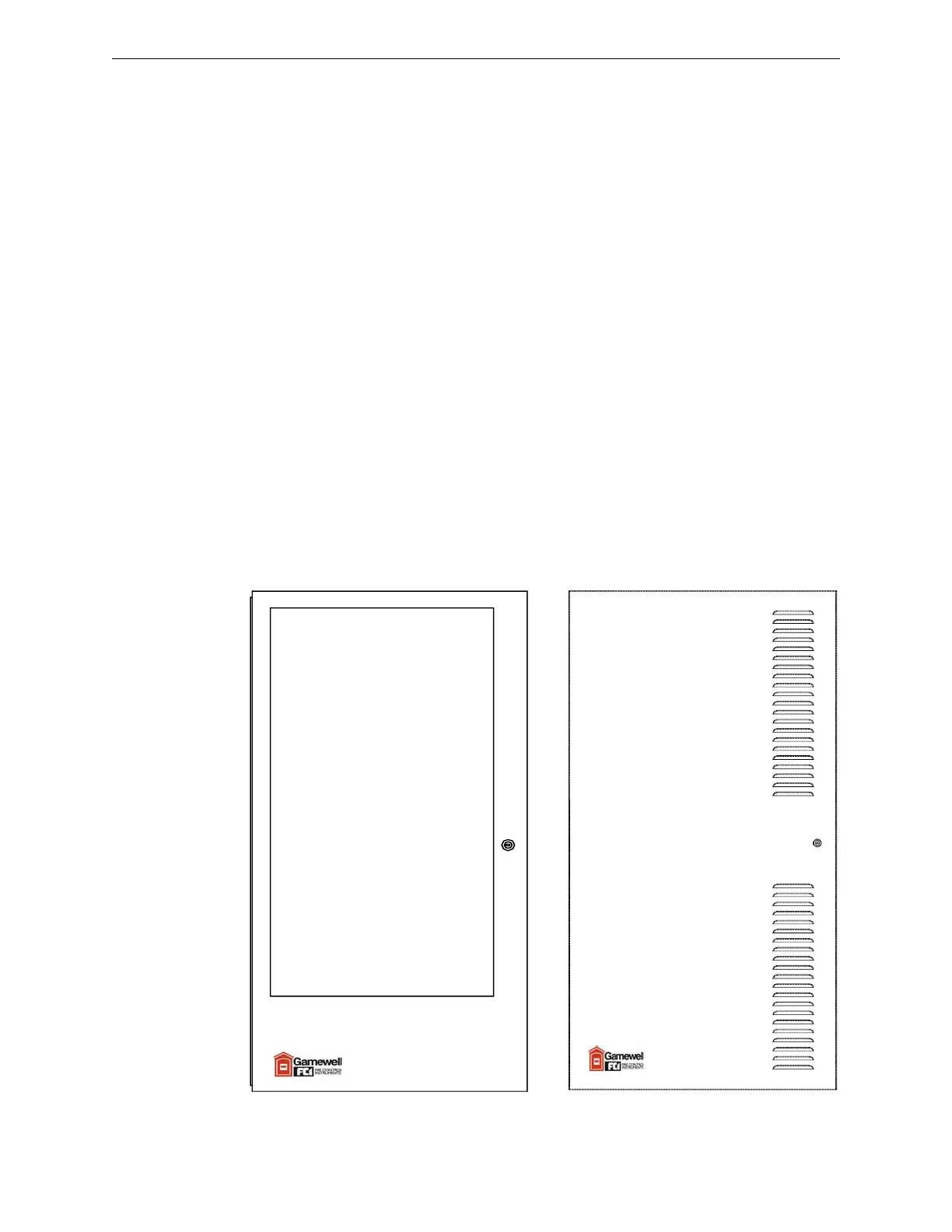

Figure 2.5.10.1 Cabinet D, Plexiglass Door Figure 2.5.10.2 Cabinet D INX Door
• Backbox:
– Two Batteries (up to 18 AH) – E3 Cabinet D, Trim Ring
(Optional Accessory)
• Outer Door
• Cab D, E3-INX-D, Back Plate:
– ILI-MB-E3/ILI95-MB-E3/ANX – INI-VG Series
– DACT-E3 – PM-9/PM-9G
– RPT-E3 – Two (2) AM-50 Series amplifiers
• Cab D, E3-INCC-D Plate:
– Up to five (5) ILI-MB-E3/ILI95-MB-E3/ANX
or ILI-S-E3/ILI95-S-E3 (optional)
– INI-VG Series
– DACT-E3 – PM-9/PM-9G
– RPT-E3
• Inner Door 1:
– (1), LCD-E3 Display – (1), INCC-MIC
– Combination of ten (10), ASM-16s or
ANU-48s
– Blank Plate(s) (optional)
– (1), INCC-TEL
• Inner Door 2 (Optional):
– (1), – (1), INCC-MIC
– Combination of twelve (12), ASM-16s or
ANU-48s
– Blank Plate(s) (optional)
– (1), INCC-TEL
• Hardware Kit
