174 E3 Series Installation/Operation Manual — P/N 9000-0574:I 11/04/10
Programming/Operation Instructions Switches (LCD-E3)
4.3 Switches (LCD-E3)

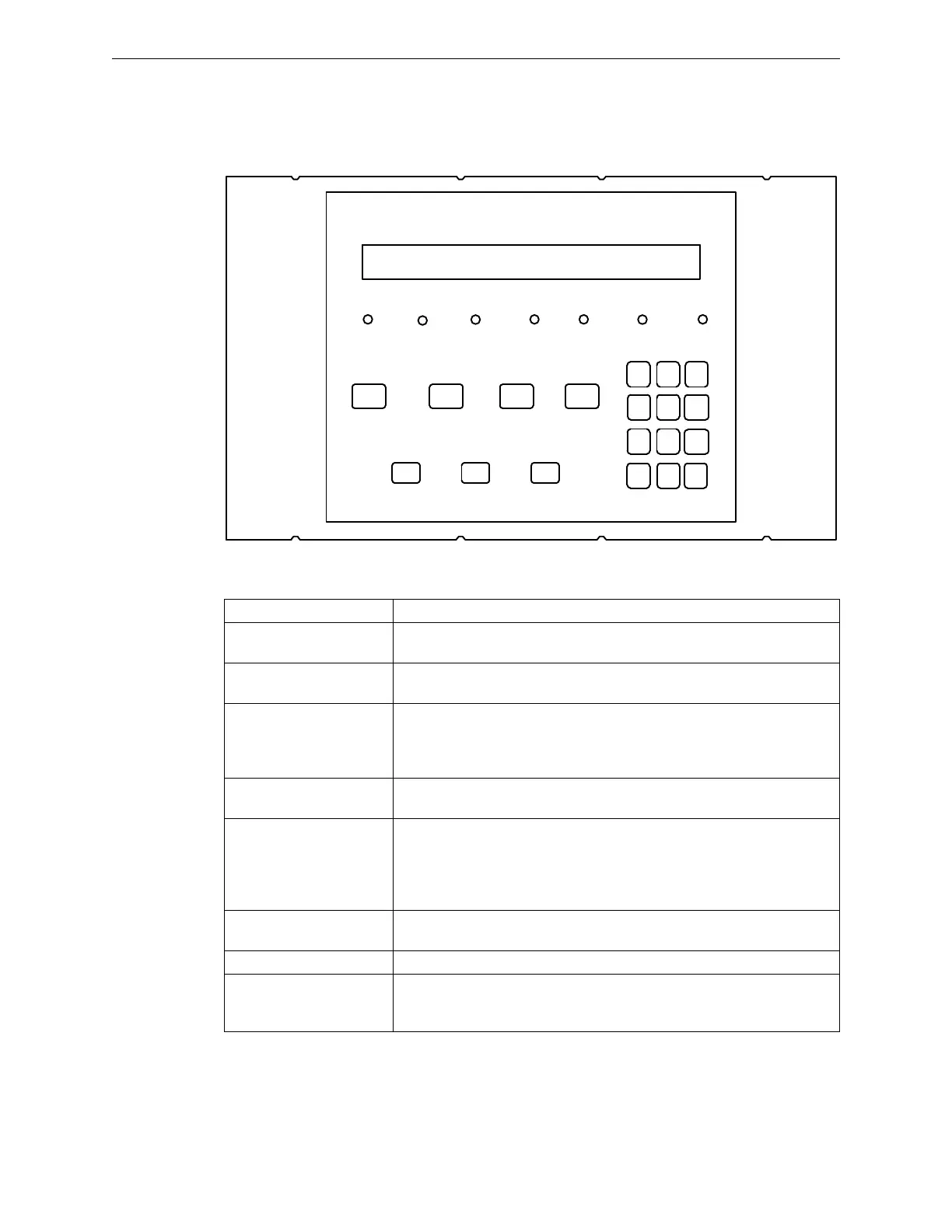

Figure 4.3.1 illustrates the LCD-E3 switches. Table 4.3.1 lists the LCD-E3 switches and a
description.
Figure 4.3.1 LCD-E3 Switches
Designation Comments
Alarm Acknowledge Silences the panel audible sounder. This must be pressed once for each
Alarm condition present in the system.
Trouble Acknowledge Silences the panel audible sounder. This must be pressed once for each
Trouble or Supervisory condition present in the system.
Signal Silence Press once and any outputs programmed as silenceable will be
deactivated. (All applicable silence LEDs will light). A second activation
will re-activate the previously silenced outputs. This switch only
functions if an Alarm or Supervisory condition exists in the system.
Lamp Test/Reset Press momentarily and all LEDs (including all elements in the display)
will light momentarily. Press and hold to reset the system.
Menu/Back Used to access certain system functions, e.g. Walk Test. The display will
prompt the operator as to which function applies.
“Menu” is pressed to initially put the E3 Series
®
into Menu Mode. The
“Back” function will step the operator out of the menu mode one element
at a time.
BKSP/Edit Used in menu operations. The display will prompt the operator as to
which function applies.
OK Accepts any changes made in the Menu field.
Numeric Keys These 12 keys allow the user to choose a specific point address by
using the numbers for point sensitivity reading, disabling an address,
etc.
Table 4.3.1 Switches
AC POWER
ON
POWER
FAULT
GROUND
FAULT
ALARM SYSTEM
TROUBLE
SUPERVISORY SYSTEM
SILENCED
ALARM
ACKNOWLEDGE
TROUBLE
ACKNOWLEDGE
SIGNAL
SILENCE
SYSTEM RESET/
LAMP TEST
MENU BACKSPACE/
EDIT
OK/
ENTER
ABC
2
MNO
6
.
-QZ
1
DEF
3
GHI
4
JKL
5
PRS
7
TUV
8
WXY
9
< >
0
_ ,
