Cabinets Installation
2.5.2.3 Cabinet A2, Outer Door Installation
1. Mount the outer door on the backbox.
2. Secure with three (3), #6-32 nuts in the three-hole mounting pattern on the left side of the
backbox as shown in Locations 1, 2, and 3 of the figure below.

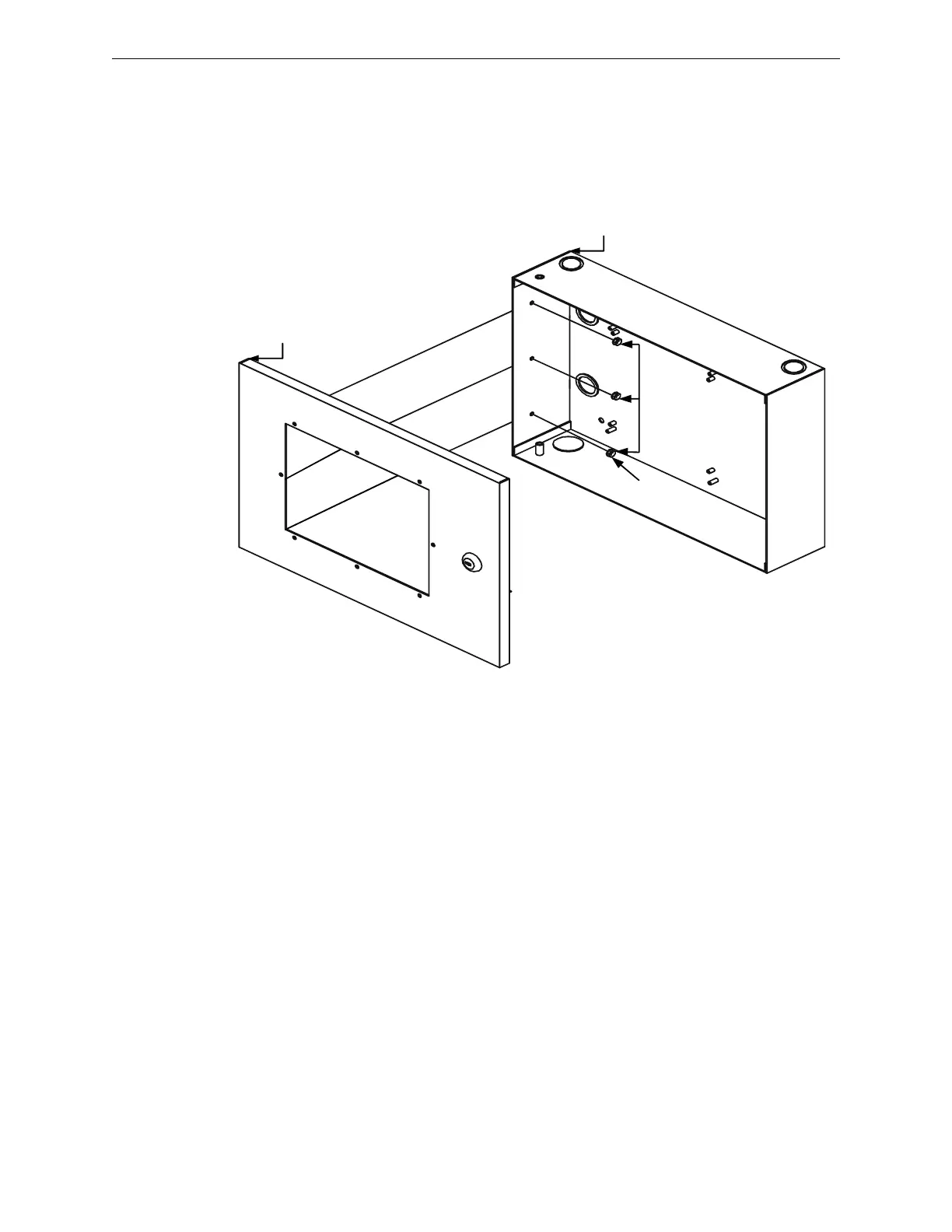

Figure 2.5.2.3.1 Cabinet A2, Outer Door Installation
CABINET A2,
BACKBOX
CABINET A2,
OUTER DOOR
N
U
T
,
H
E
X
(
#
6
-
3
2
)
3
P
L
A
C
E
S
3
2
1
3
2
1
