E3 Series Installation/Operation Manual — P/N 9000-0574:I 11/04/10 61
Cabinets Installation
2.5.8.2 Cabinet C, Trim Rings Installation (Optional Accessory)
1. Insert the Cabinet C, trim top ring over the top three-hole mounting pattern.
2. Secure with three (3), #6 Hex Kep nuts in the three-hole mounting pattern on the top of the
backbox as shown in Locations 1, 2 and 3 of the figure below.
3. Insert the Cabinet C, trim bottom ring on the bottom three-hole mounting pattern.
4. Secure with three (3), #6 Hex Kep nuts in the three-hole mounting pattern on the bottom of the
backbox as shown in Locations 4, 5 and 6 of the figure below.
5. Insert the Cabinet C, trim left ring on the left side of the four-hole mounting pattern.
6. Secure with four (4), #6 Hex Kep nuts in the four-hole mounting pattern on the left side of the
backbox as shown in Locations 7, 8, 9 and 10 of the figure below.
7. Insert the Cabinet C, trim right ring on the right side of the four-hole mounting pattern.
8. Secure with four (4), #6 Hex Kep nuts in the four-hole mounting pattern on the right side of the
backbox as shown in Locations 11, 12, 13 and 14 of the figure below.
For information on flush-mounting, refer to the E3 Series Cabinet Trim Rings Installation
Instructions, P/N 9001-0058.

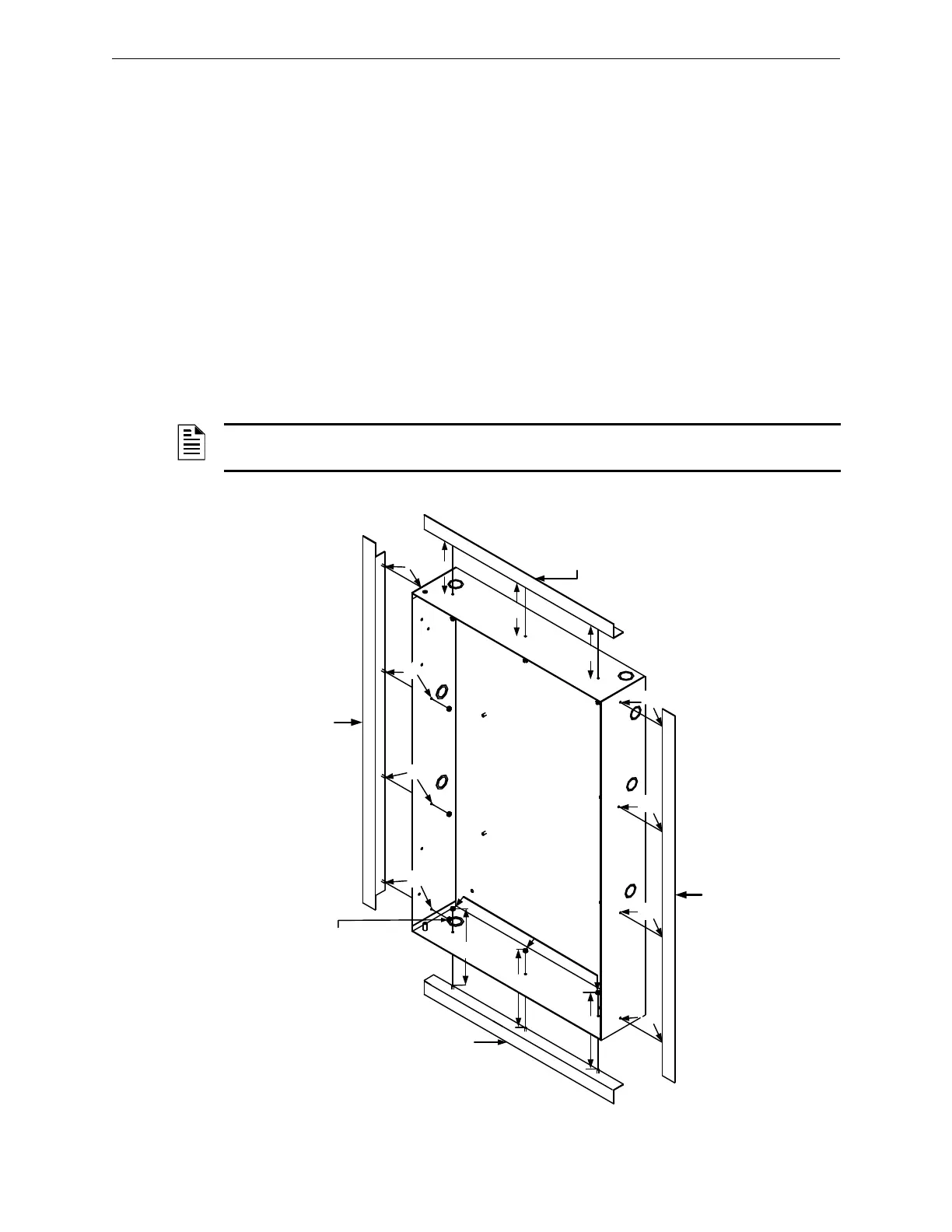

Figure 2.5.8.2.1 Cabinet C, Trim Rings Installation
NOTE: Use the Trim Ring Hardware Kit provided. The trim top/bottom and trim left/right rings are
interchangeable.
NOTE:
#6 HEX,
KEPS NUTS,
(14 PLACES)
E3 Cabinet C,
Top Trim Ring
E3 Cabinet C,
Bottom Trim Ring
E3 Cabinet C,
Right Trim Ring
7
8
9
E3 Cabinet C,
Left Trim Ring
1
2
3
6
5
4
10
12
