E3 Series Installation/Operation Manual — P/N 9000-0574:I 11/04/10 93
Cabinets Installation
2.5.10.10 Cabinet D, 14-Bay Inner Door Installation
1. Mount the first, top row of the /ASM-16s sub-assemblies to the 14-bay inner door and secure
with six (6), #6-32 nuts as shown in Location 1 of the figure below.
2. Interlock the first, bottom row of the /ASM-16s with the second, top row of the second set of
ASM-16 sub-assemblies and mount the units to the 14-bay inner door by securing six (6), #6-
32 nuts as shown in Location 2 of the figure below.
3. Interlock the second, bottom row of the second set of ASM-16 sub-assemblies with the third,
top row of the third set of ASM-16 sub-assemblies, and mount the units to the 14-bay inner
door by securing six (6), #6-32 nuts as shown in Location 3 of the figure below.
4. Interlock the third, bottom row of the third set of ASM-16 sub-assemblies with the fourth, top
row of the fourth set of ASM-16 sub-assemblies, and mount the units to the 14-bay inner door
by securing six (6), #6-32 nuts as shown in Location 4 of the figure below.
5. Interlock the fourth, bottom row of the fourth set of ASM-16 sub-assemblies with the fifth, top
row of the telephone and microphone box and mount the units to the 14-bay inner door by
securing six (6), #6-32 nuts as shown in Location 5 of the figure below.
6. Mount the fifth, bottom row of the telephone and microphone box to the 14-bay inner door by
securing six (6), #6-32 nuts as shown in Location 6 of the figure below.
7. Secure the opposite end of the bonding wire to the welded #6 stud on the inner side of the inner
door using the #6 nut as shown in Location 7 of the figure below.
8. After the panel is wired, use the thumbscrews to secure the inner door to the backbox as shown
in Location 8 of the figure below.

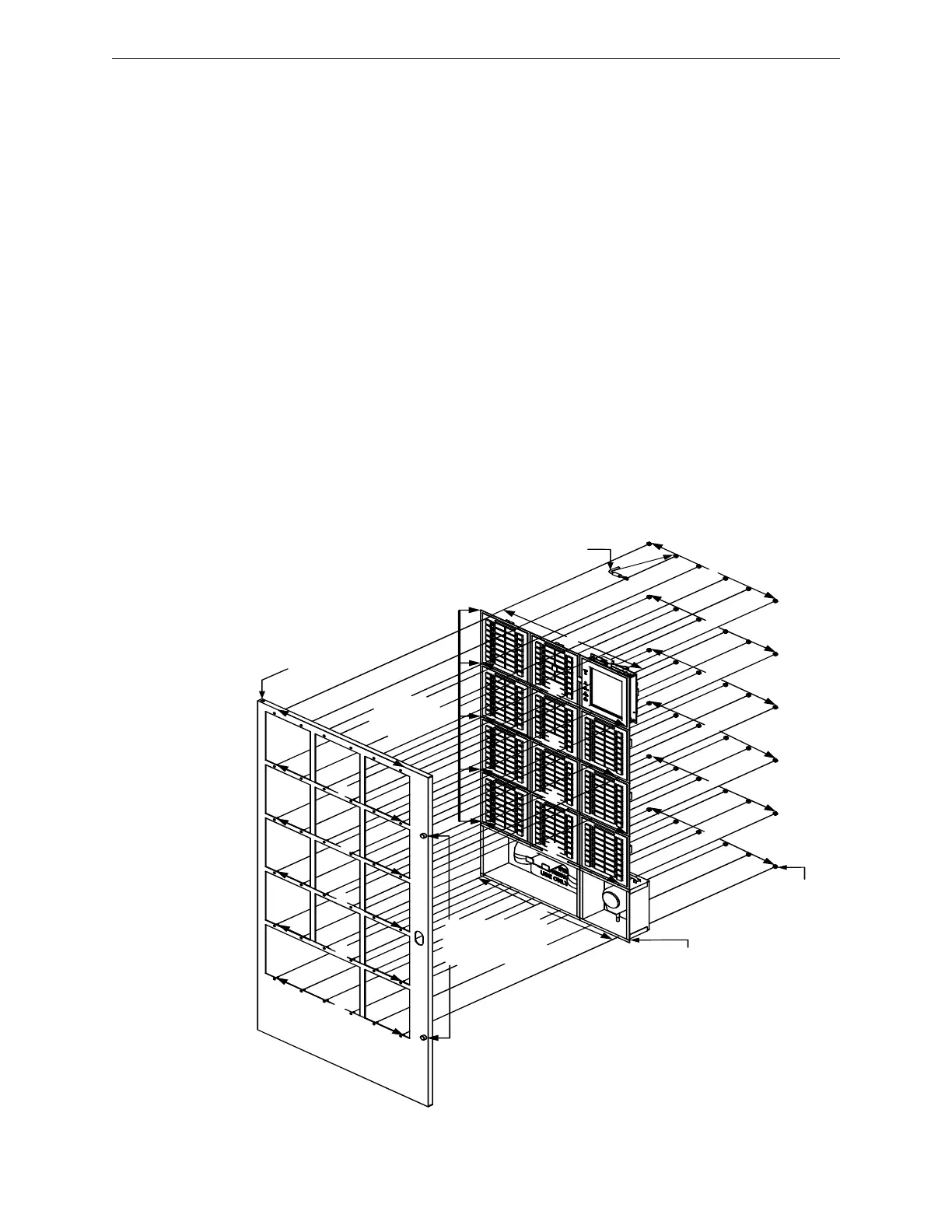

Figure 2.5.10.10.1 Cabinet D, 14-Bay Inner Door Installation
T
E
L
E
P
H
O
N
E
B
O
X
M IC R O PH O N E
B O X
C A B IN E T D , 14-B A Y ,
IN N ER D O O R
N
G
A
A S M -1 6 ,
11 P L A C E S
M A X .
N U T , H E X
(# 6-3 2)
36 P L A C E S
M A X .
1
2
3
4
5
6
1
2
3
4
5
6
1
2
3
4
5
6
B O N D IN G
W IR E
7
7
T H UM B S C R E W S
T O S E C U R E T H E
IN N E R D O O R T O
T H E B A C K B OX
8
8
