Honeywell Gamewell-FCI E3 Series - Cabinet a or AA, 2-Bay and 3-Bay Outer Door Installation

38 E3 Series Installation/Operation Manual — P/N 9000-0574:I 11/04/10
Installation Cabinets
2.5.4.3 Cabinet A or AA, 2-Bay and 3-Bay Outer Door Installation
1. Mount the 2-bay or 3-bay outer door on the backbox.
2. Secure with three (3), #6-32 nuts in the three-hole mounting pattern on the left side of the
backbox as shown in Locations 1, 2, and 3 of the figure below.

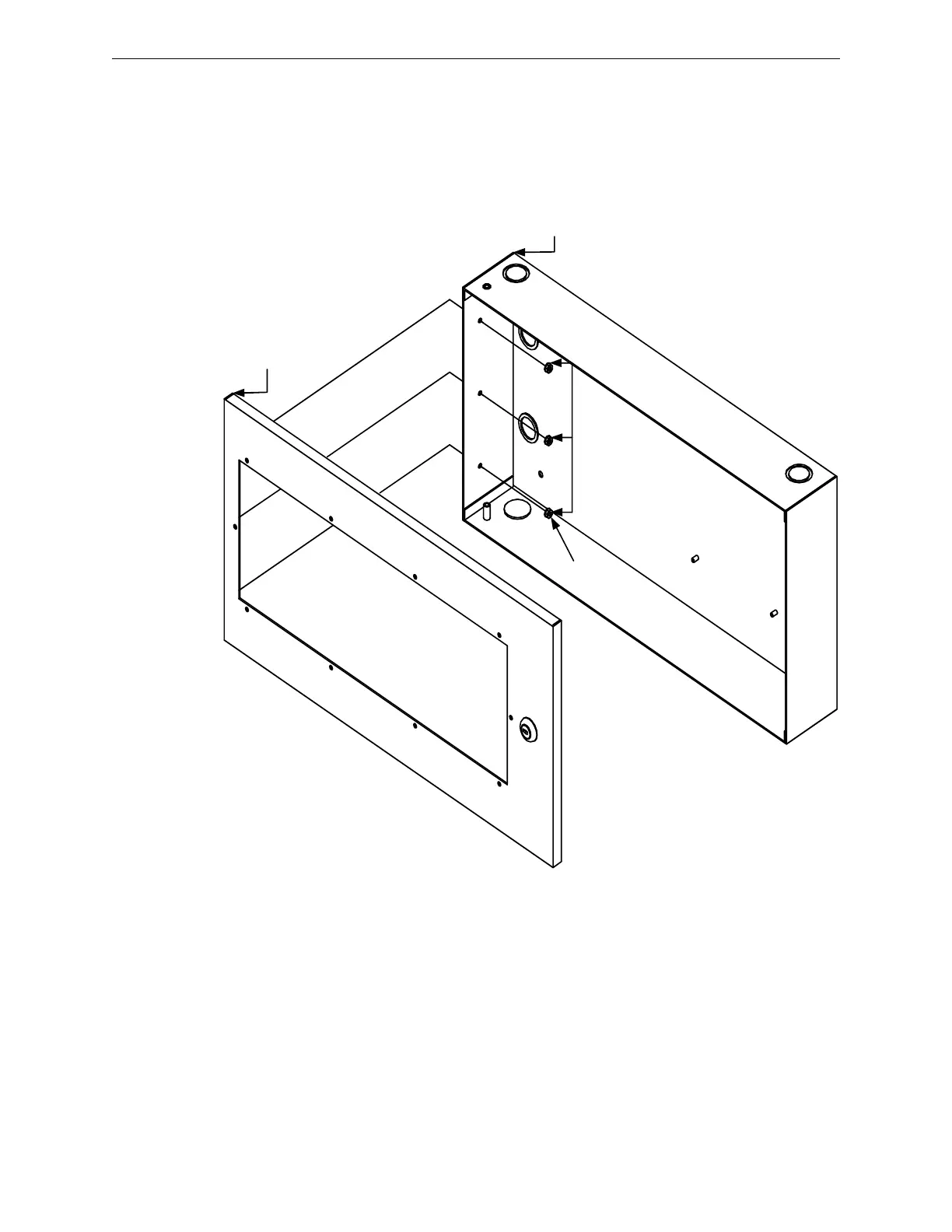

Figure 2.5.4.3.1 Cabinet A or AA, 2-Bay and 3-Bay Outer Door Installation
CABINET A or AA,
2-BAY AND 3-BAY,
OUTER DOOR
CABINET A or AA,
BACKBOX
1
2
3
1
2
3
N
U
T
S
,
#
6
-
3
2
3
P
L
A
C
E
S
