56 E3 Series Installation/Operation Manual — P/N 9000-0574:I 11/04/10
Installation Cabinets
2.5.7.4 B-Slim-E3 Plate Installation
1. Mount the first ILI95-MB-E3/ILI-MB-E3 to the B-Slim-E3 Plate and secure the eight (8),
screws (#4-40) in the eight-hole mounting pattern as shown in Location 1 of Figure 2.5.7.4.2.
2. Mount the PM-9/PM-9G on the B-Slim-E3 Plate and secure the six (6), screws (#4-40) in the
six-hole mounting pattern as shown in Location 2 of Figure 2.5.7.4.2.

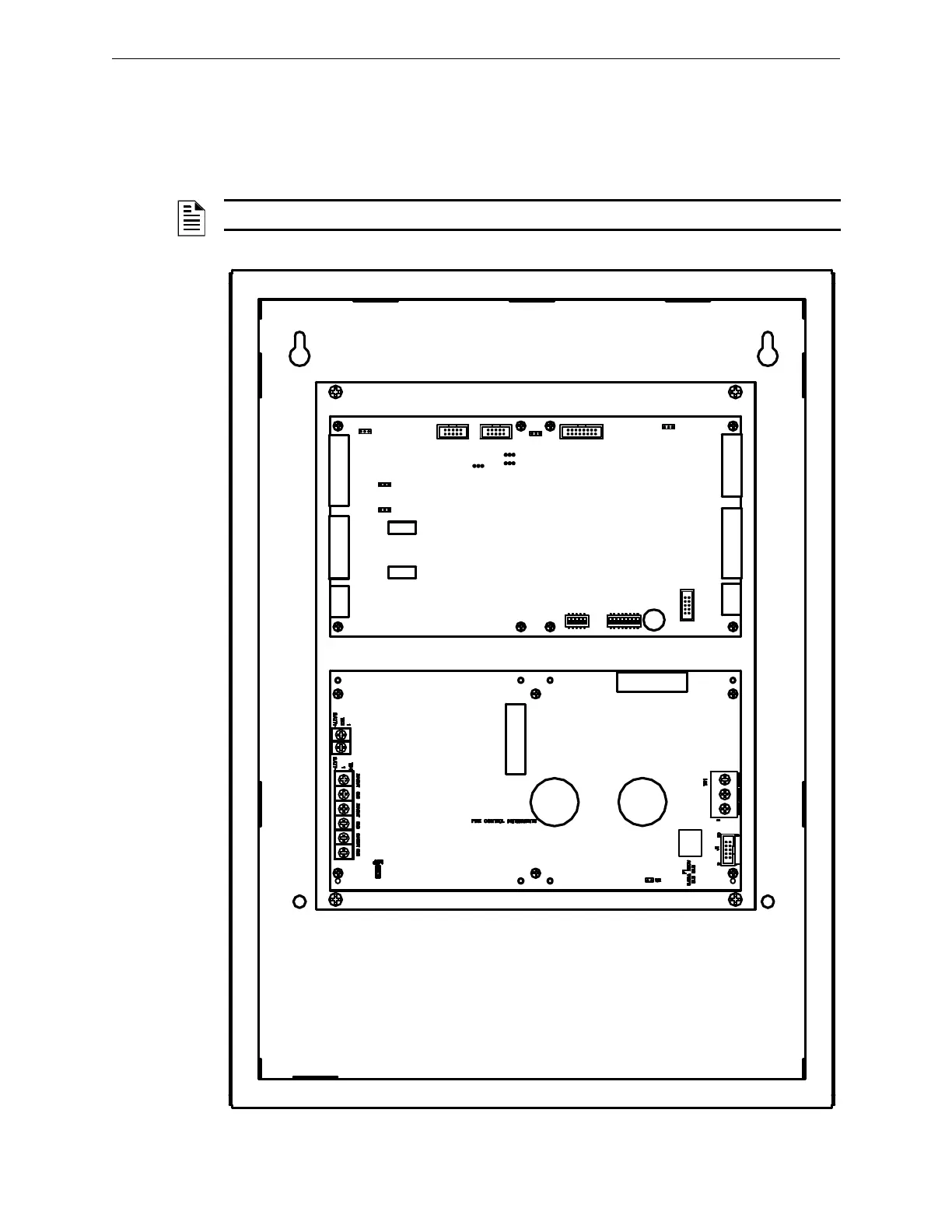

Figure 2.5.7.4.1 B-Slim-E3 Plate Installation
NOTE: You can mount the DACT-E3/RPT-E3 or the ANX on top of the ILI-MB-E3/ILI95-MB-E3.
ILI-MB-E3/ILI95-MB-E3
PM-9/PM-9G
PM-9/PM-9G PCB
To Next Page
