E3 Series Installation/Operation Manual — P/N 9000-0574:I 11/04/10 53
Cabinets Installation
2.5.7.1. B-Slim Cabinet Backbox Installation
1. To prepare the mounting site, pre-drill four (4), #10 screws, using the dimensions shown in the
figure below. Use four (4), #10 screws.
2. Secure with two (2), #10 screws in the two-hole mounting pattern as shown in Locations 1 and
2 of Figure 2.5.7.1.1.
3. Set the backbox over the top, two-hole mounting pattern, and hang the backbox over the two
screw heads.
4. Insert and secure two (2), #10 screws in the two-hole mounting patterns as shown in Locations
3 and 4 of Figure 2.5.7.1.1.

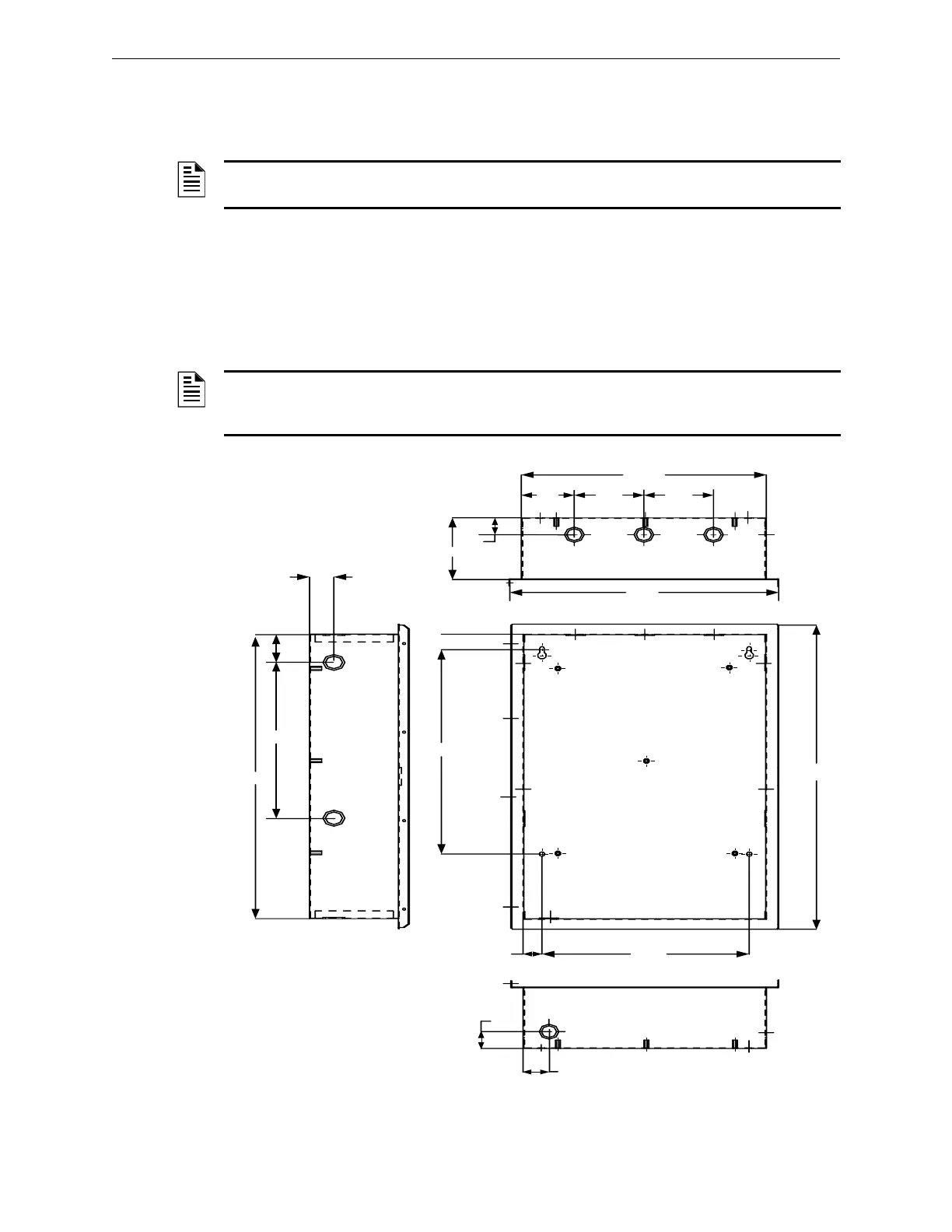

Figure 2.5.7.1.1 B-Slim Cabinet Dimensions
NOTE: If the fasteners are anchored to a wallboard, use #10 wall anchors. Mounting to concrete
walls should be backed by plywood to insulate the equipment from possible condensation.
NOTE: Add knockouts to the left and right side of the rear panel of the backbox. Do not add
knockouts in the center or top of the backbox. To add larger knockouts, increase the size of the
existing knockouts.
1.0 0"
14.50"
1.0 94"
12.00"
20.094"
11.00"
2.0 0"
1.2 5"
1.5 0"
14.094"
4.0 0"4.0 0"
4.547"
1.2 5"
15.50"
1
2
3 4
