Honeywell Gamewell-FCI E3 Series - 2: Intelligent Loop Interface - Slave Board Sub-Assembly

E3 Series Installation/Operation Manual — P/N 9000-0574:I 11/04/10 107
Intelligent Loop Interface - Slave Board (ILI-S-E3) Connections E3 Series System Connections
3.4.2 Intelligent Loop Interface - Slave Board Sub-Assembly

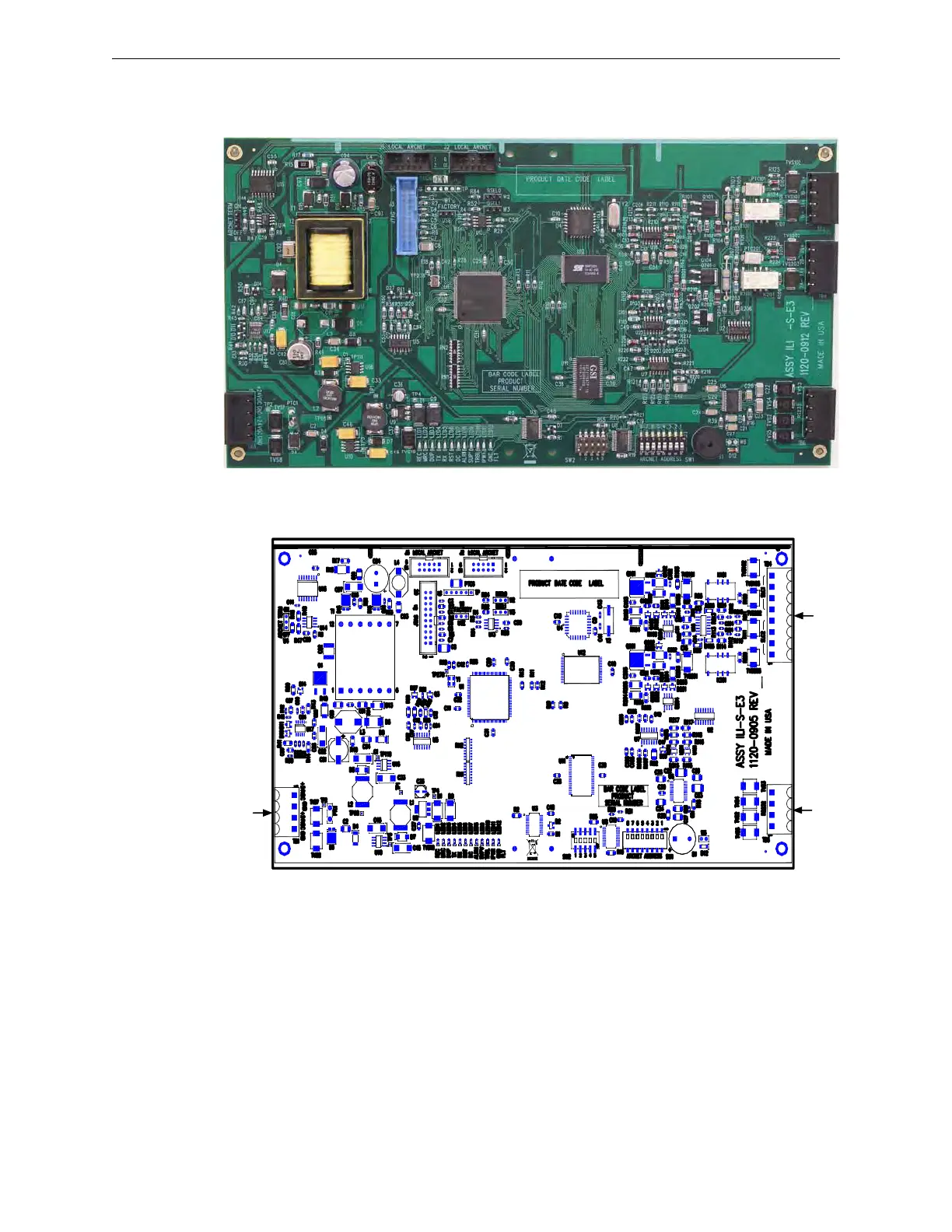

Figure 3.4.2.1 and illustrate the Intelligent Loop Interface - Slave board (ILI-S-E3) sub-assembly.
Figure 3.4.2.1 ILI-S-E3 Signaling Line Circuit Sub-Assembly
Figure 3.4.2.2 ILI-S-E3 Signaling Line Circuit Sub-Assembly
TB6
TB1
TB4
