2.5.9 Cabinet C, E3-INCC-C Plate Installation Instructions
The Cabinet C, E3-INCC-C Plate Assembly typically houses the following:
• Backbox
– Two Batteries (up to 19 AH)
• E3-INCC-C Plate Outer Door
• E3-INCC-C Plate:
• E3-ILI-C Plate:
• AM-50 Extender Plate (Optional):
– AM-50 Series amplifiers
• INCC-E3 PLATE 7-Bay Inner Door (Optional):
• INCC-E3 8-Bay Inner Door:
• Hardware Kit

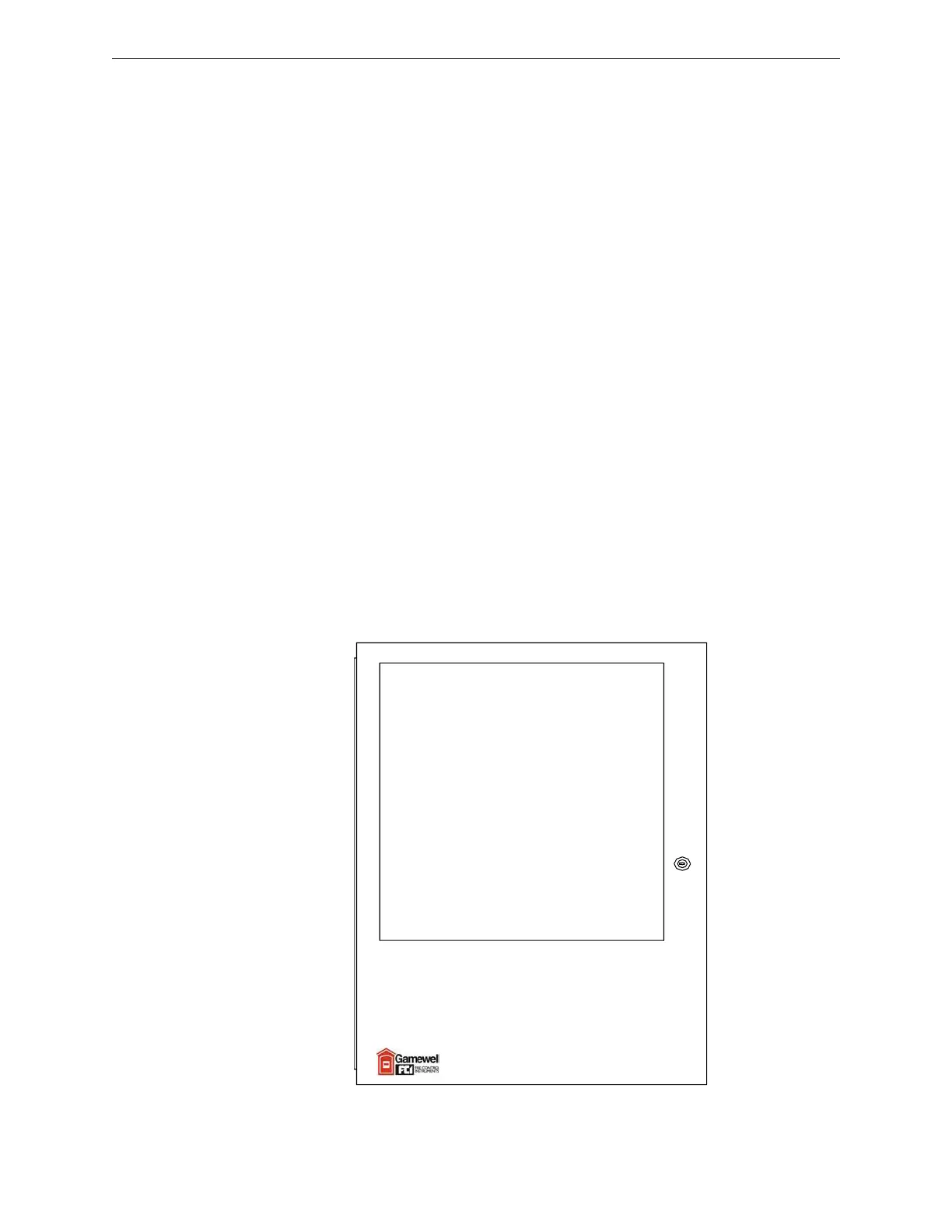

Figure 2.5.9.1 Cabinet C, E3-INCC-C Standard View
– ILI-MB-E3/ILI95-MB-E3/ANX – INI-VGC, INI-VGE
– DACT-E3 – PM-9/PM-9G
– RPT-E3
– ILI-MB-E3/ILI95-MB-E3/ANX – RPT-E3
– (2) ILI-E3 or ILI95-E3 Series – PM-9/PM-9G
– DACT-E3
– (1) LCD-E3 keypad – Combination of four (4) ASM-16s or ANU-48s
– (1), INCC-TEL – (1), INCC-MIC
– (1) – (1), INCC-TEL
– Combination of five (5),
ASM-16s, ANU-48s
– (1), INCC-MIC
