Honeywell Gamewell-FCI E3 Series - 4: Digital Alarm Communicator (DACT-E3) Sub-Assembly

146 E3 Series Installation/Operation Manual — P/N 9000-0574:I 11/04/10
E3 Series System Connections Digital Alarm Communicator Transmitter (DACT-E3) Connections
3.10.4 Digital Alarm Communicator (DACT-E3) Sub-Assembly

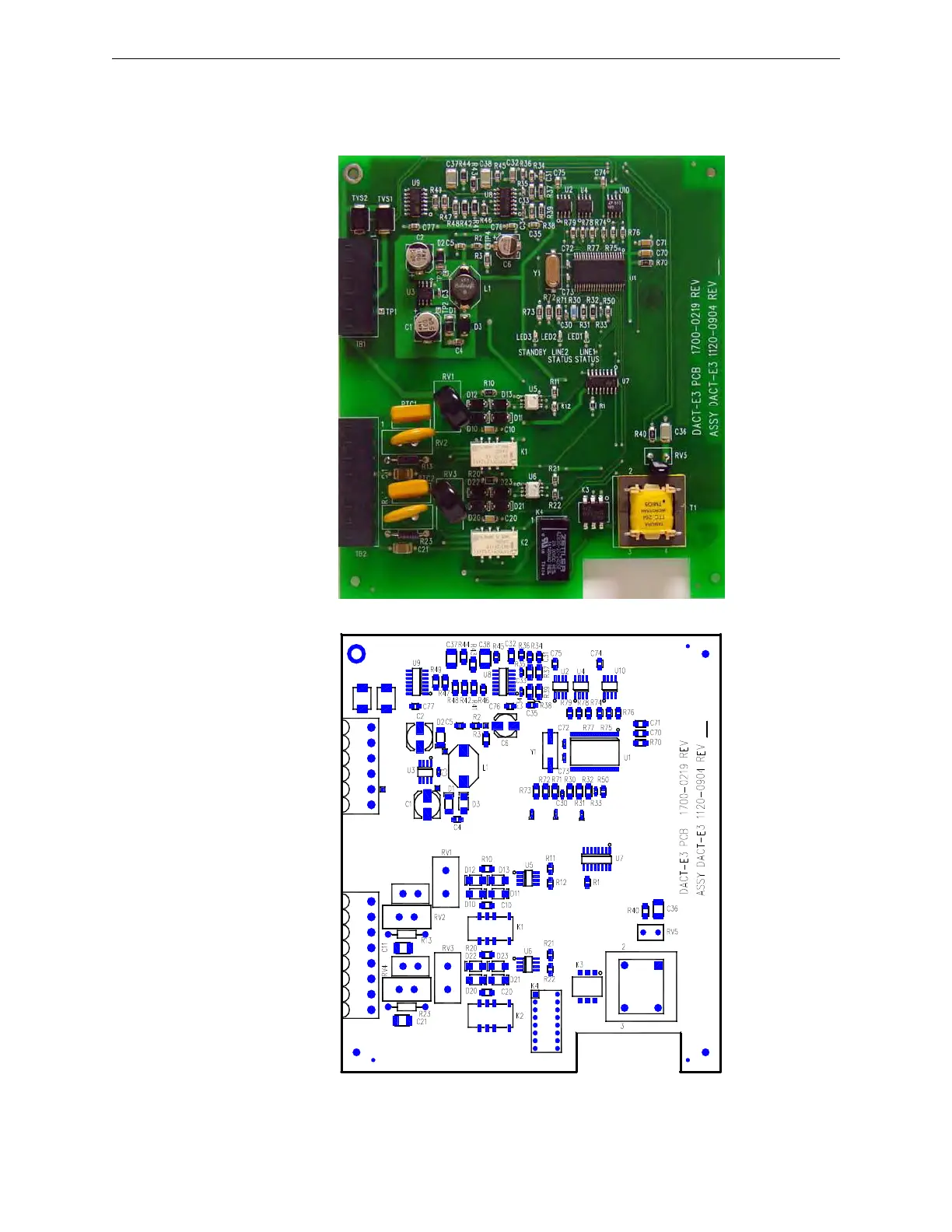

Figure 3.10.4.1 and Figure 3.10.4.2 illustrate the Digital Alarm Communicator (DACT-E3) sub-
assembly.
Figure 3.10.4.1 DACT-E3 Sub-Assembly
Figure 3.10.4.2 DACT-E3 Sub-Assembly
1
TB1
TB2
1
TVS2 TVS1
PTC1
PTC2
1
TP4
+
+
1
4
STANDBY
LINE2
STATUS
LINE1
STATUS
TP1
TP2
LED3 LED2 LED1
+
TP3
T1
