Honeywell Gamewell-FCI E3 Series - 6: Cabinet B Installation Instructions

44 E3 Series Installation/Operation Manual — P/N 9000-0574:I 11/04/10
Installation Cabinets
2.5.6 Cabinet B Installation Instructions
The Cabinet B assembly typically houses the following:
• Backbox:
– ILI-MB-E3/ILI95-MB-E3
– PM-9/PM-9G
– Batteries
• Optional (Mounted on top of the ILI-MB-E3/ILI95-MB-E3)
– DACT-E3/RPT-E3
– ILI-S-E3/ILI95-S-E3 (Optional in place of the DACT-E3/RPT-E3)
– ANX (Optional in place of the DACT-E3/RPT-E3)
• Optional Accessory
– E3 Cabinet B, Trim Rings
• Outer Door
• Inner Door, 2-Bay:
– LCD-E3
– ASM-16 or blank Plate
• Hardware Kit

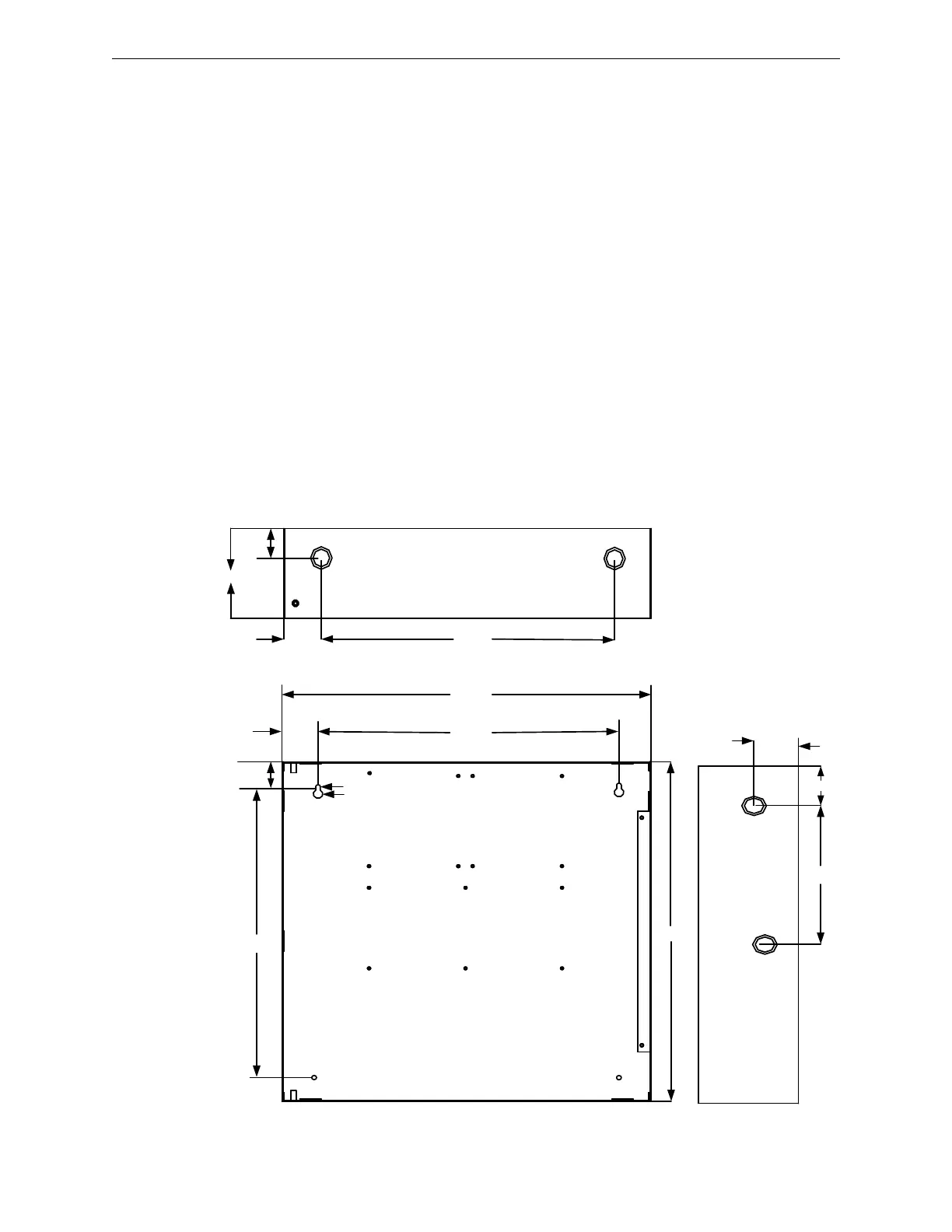

Figure 2.5.6.1 Cabinet B, Standard View
16.00"
19.38"
16.69"
BACKBOX TOP
BACKBOX
SIDE PANEL
BACKBOX
19 3/8"
1.50"
16.38"
1.25"
8.00"
1.50"
BACKBOX DEPTH = 4.50"
1.35"
1
2
3 4
.25"
.50"
3.38"
2.25"
4.50"
