Cabinets Installation
2.5.1.5 Cabinet A1, Inner Door Installation
1. Mount the inner door and secure with four (4), #6-32 nuts in the four-hole mounting pattern as
shown in Location 1 of the figure below.
2. Secure the opposite end of the bonding wire to the welded #6 stud on the inner side of the inner
door using the #6 nut as shown in Location 2 of the figure below.
3. After the panel is wired, use the thumbscrews to secure the inner door to the backbox as shown
in Location 3 of the figure below.

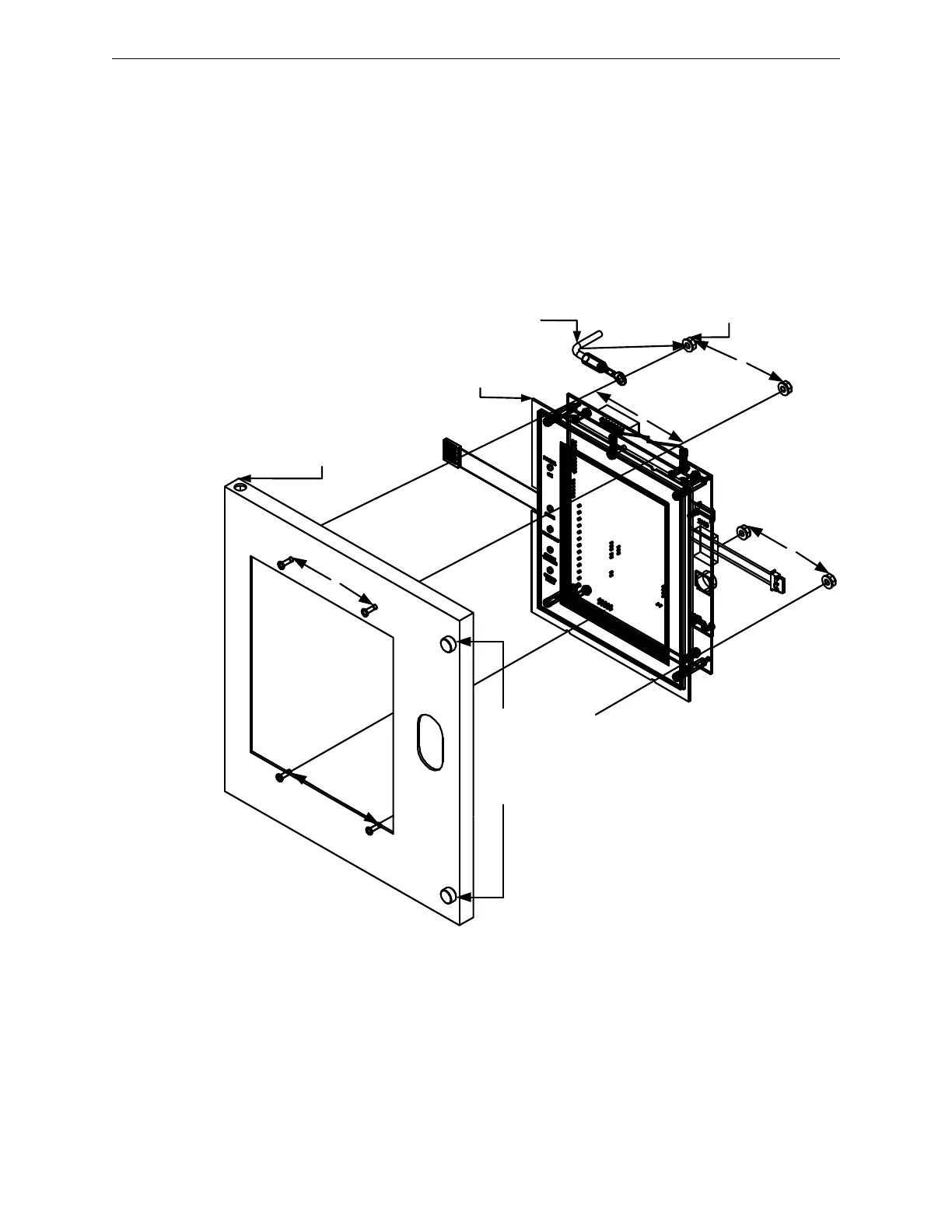

Figure 2.5.1.5.1 Cabinet A1, Inner Door Installation
2
2
1
1
1
1
1
3
3
CABINET A1,
INNER DOOR
THUMBSCREWS
TO SECURE THE
INNER DOOR TO
THE BACKBOX
NGA
MODULE
BONDING
WIRE
NUT, HEX
(#6-32)
4 PLACES
