E3 Series Installation/Operation Manual — P/N 9000-0574:I 11/04/10 77
Cabinets Installation
2.5.9.9 Cabinet C, INCC-E3, 7-Bay Inner Door to the Backbox
Installation
1. Place the nylon spacer (5/8” x .314ID x .312) over the backbox bottom hinge pin hole as
shown in Location 1 of the figure below.
2. Mount the INCC-E3, 7-bay inner door to the backbox by sliding the inner door top hinge pin
hole onto the backbox top hinge pin hole as shown in Location 2 of the figure below.
3. Align the inner door bottom hinge pin hole with the backbox bottom hinge pin.
4. Slide the inner door over the inner door bottom hinge pin hole on top of the nylon spacer, and
secure using the #8 x 5” screw as shown in Location 2 of the figure below.
5. After the inner door is secured in place, attach one end of the bonding wire to the top hinge pin
hole using the #8 x .5” screw as shown in Location 3 of the figure below.
NOTE 3: The 7-bay or 8-bay inner door is optional.
NOTE 4: For information on the installation of the opposite end of the bonding wire, Section
2.5.9.10, Step 5 and Location 5 of Figure 2.5.9.10.1.

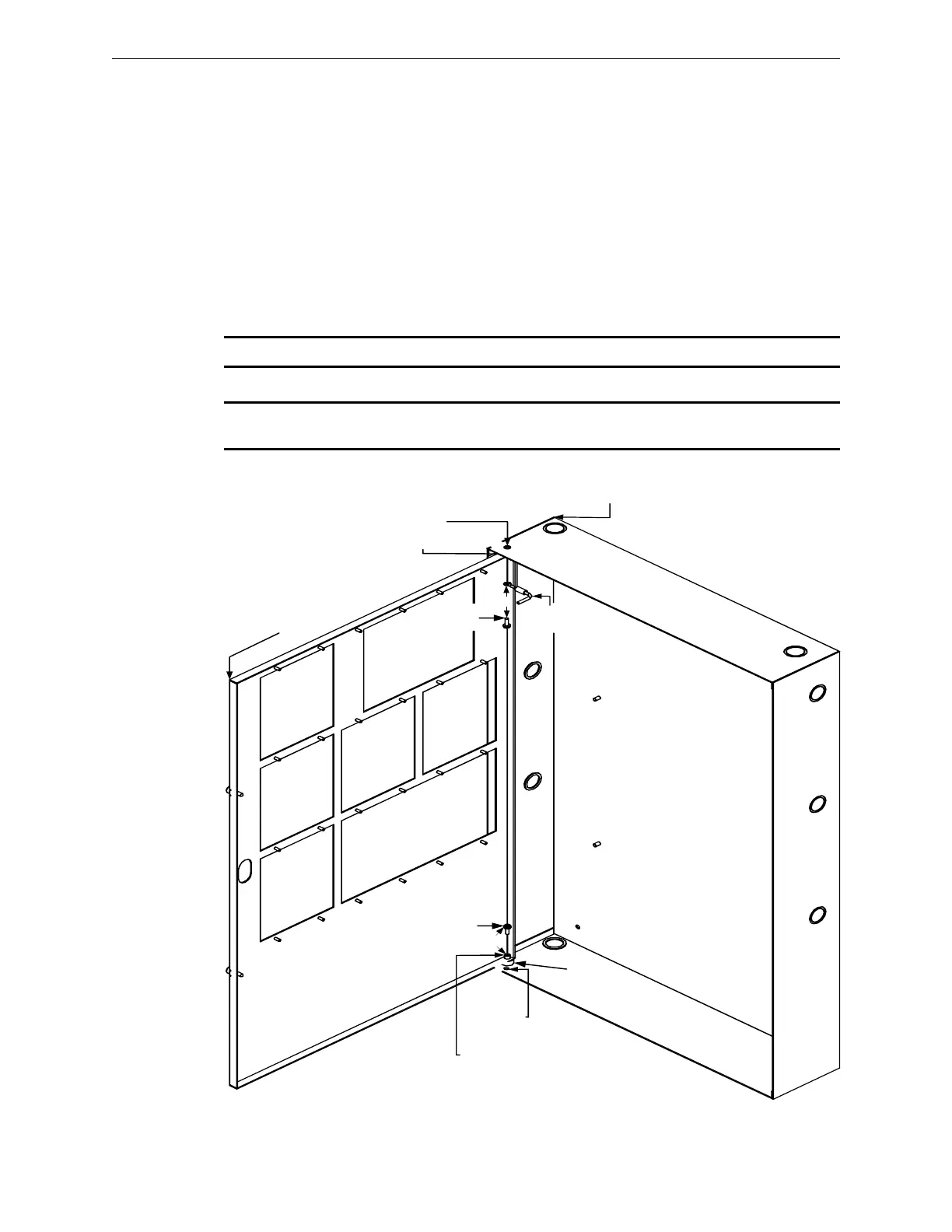

Figure 2.5.9.9.1 Cabinet C, INCC-E3, 7-Bay Inner Door to the Backbox Installation
BA CKBO X
INC C -E3,
INN ER D OO R
BAC KBO X
BO TTO M
HINGE PIN
INNE R DO OR
BO TTO M
HINGE PIN HOLE
BAC KBO X TOP
HING E PIN
INNE R DO O R TOP
HING E PIN HOLE
N
Y
L
O
N
S
P
A
C
E
R
5
/
8
"
O
D
x
.
3
1
4
I
D
x
.
3
1
2
1
SC R E W ,
#8 x .5"
3
SC R EW ,
#8 x .5"
BO NDIN G
W IRE
2
2
3
2
