E3 Series Installation/Operation Manual — P/N 9000-0574:I 11/04/10 31
Cabinets Installation
2.5.2.5 Cabinet A2, Inner Door Installation
1. Mount the inner door and secure with four (4), #6-32 nuts in the four-hole mounting pattern as
shown in Location 1 of the figure below.
2. Secure the opposite end of the bonding wire to the welded #6 stud on the inner side of the inner
door using the #6 nut as shown in Location 2 of the figure below.
3. After the panel is wired, use the thumbscrews to secure the inner door to the backbox as shown
in Location 3 of the figure below.

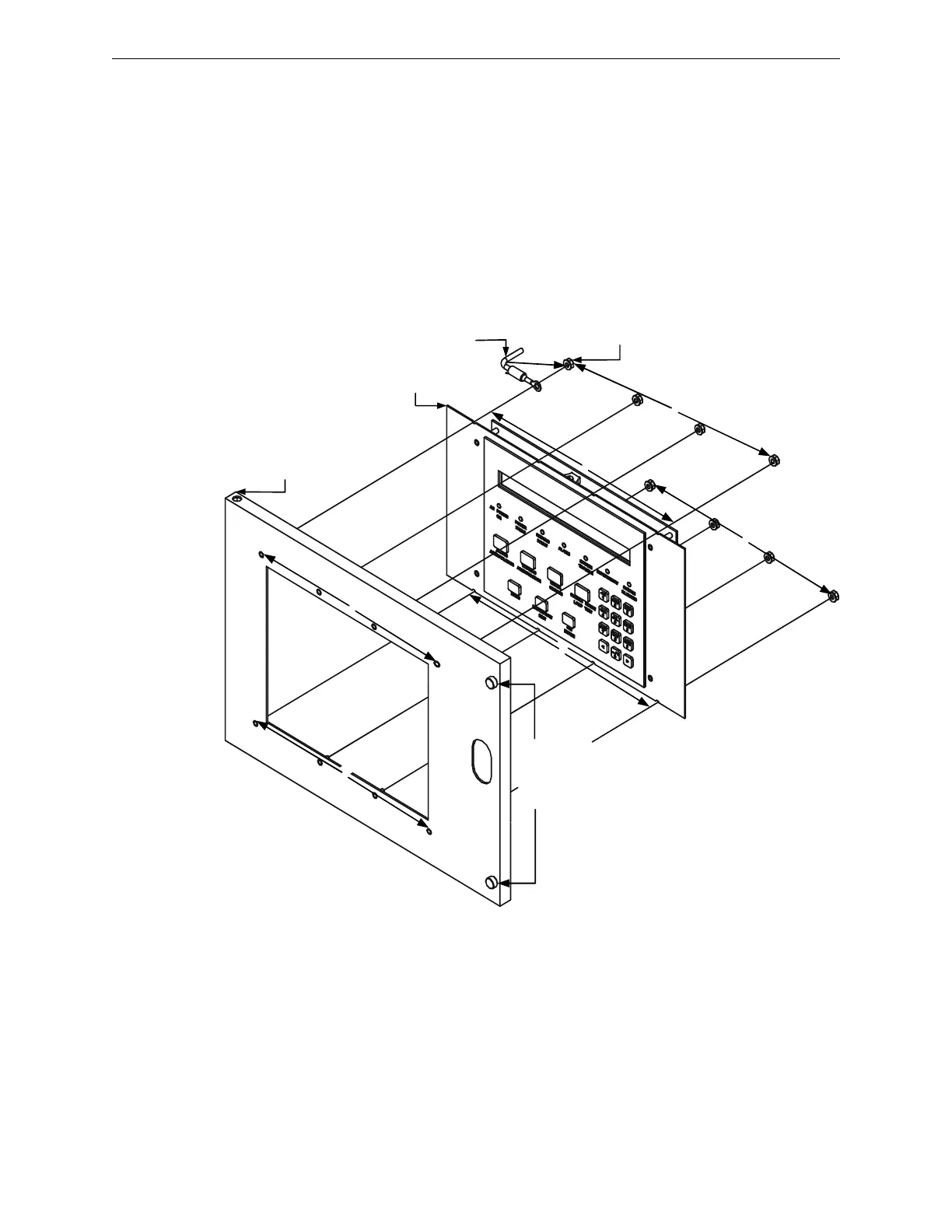

Figure 2.5.2.5.1 Cabinet A2, Inner Door Installation
BONDING
WIRE
NUT, HEX
(#6-32)
8 PLACES
CABINET A2,
INNER DOOR
LCD-E3
KEYPAD
1
1
1
1
2
2
1
1
THUMBSCREWS
TO SECURE THE
INNER DOOR TO
THE BACKBOX
3
3
