Honeywell Gamewell-FCI E3 Series - 2: Cabinet A2, Installation Instructions

26 E3 Series Installation/Operation Manual — P/N 9000-0574:I 11/04/10
Installation Cabinets
2.5.2 Cabinet A2, Installation Instructions
The E3 Series, Cabinet A2, assembly typically includes the following:
• Backbox
– Cabinet A2, Trim Rings (Optional Accessory)
• Outer Door
• Inner Door:
– LCD-E3 Keypad
• Hardware Kit

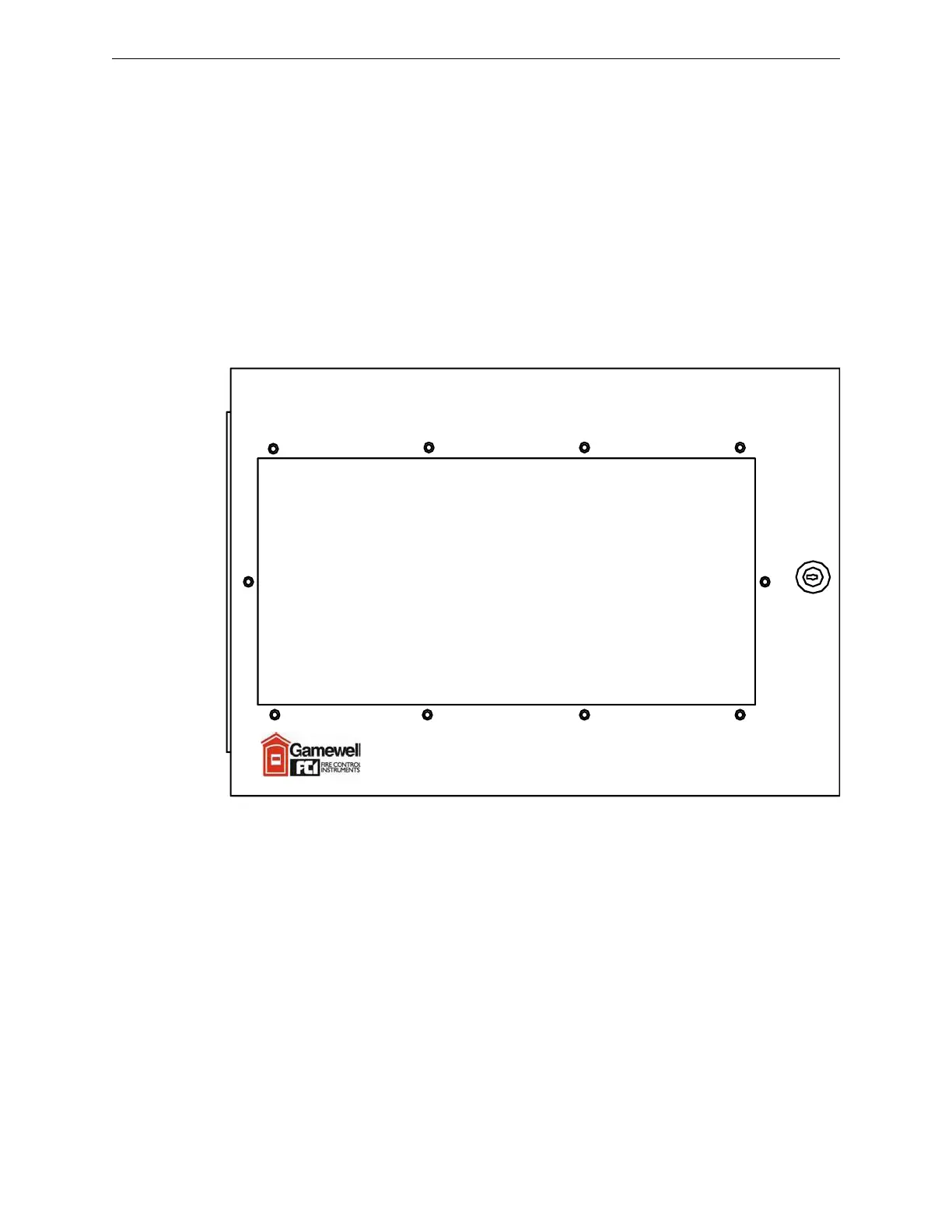

Figure 2.5.2.1 Cabinet A2, (Standard View)
