Honeywell Gamewell-FCI E3 Series - 4: Cabinet a or AA, 2-Bay Installation Instructions

E3 Series Installation/Operation Manual — P/N 9000-0574:I 11/04/10 35
Cabinets Installation
2.5.4 Cabinet A or AA, 2-Bay Installation Instructions
The E3 Series
®
, Cabinet A or Cabinet AA, 2-Bay assembly typically includes the following:
• Backbox
– Cabinet A, Trim Rings (Optional Accessory)
• Outer Door
• Inner Door, 2-Bay:
– One (1), LCD-E3 unit
– One (1), ASM-16 unit
– One (1), Blank Plate Optional
• Hardware Kit

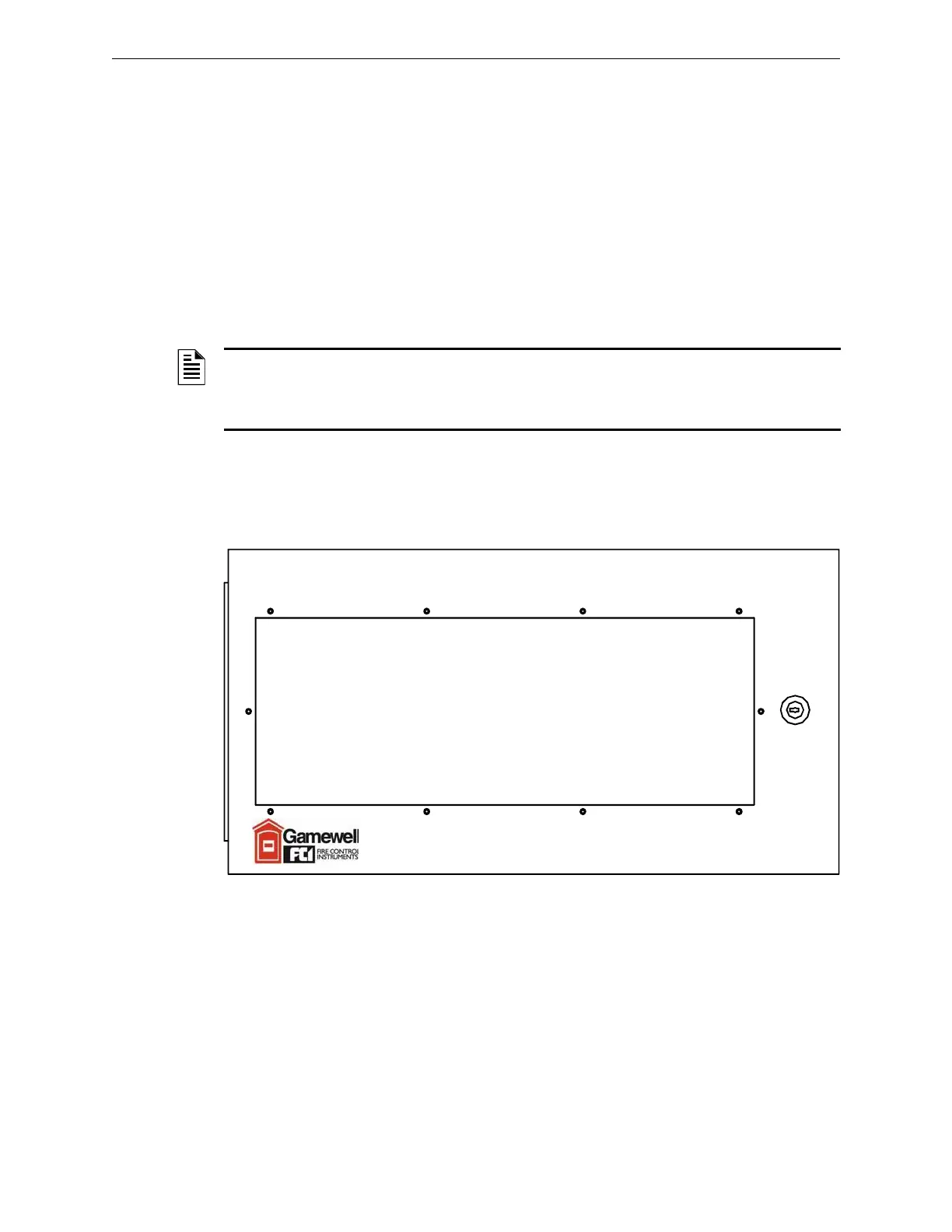

Figure 2.5.4.1 Cabinet A or AA, 2-Bay Standard View
NOTE: Cabinet AA may be used with the 2-Bay and 3-Bay outer door. A microphone can be
installed as an optional accessory in the blank plate. For information on the Cabinet A or Cabinet
AA installation, refer Section 2.5.4 and Section 2.5.5.
